Product Description

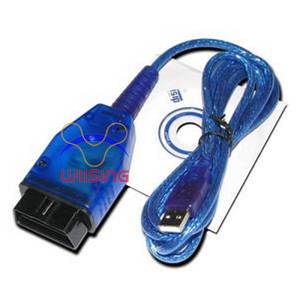

• This diagnostic cable is usable for ISO9141 and KWP2000 transmission protocol like used.

  For example by:

  --Volkswagen

  --Skoda

  --Audi

  --Seat


Reference Data

• 1.This cable can not work if your car uses a protocol ssystem like VPW,PWM or Can-bus.

  2. Bus of communication

  3.Terminal L= Ignition for waking up car computing system (ECU: Engine Control Unit)

  4.Existed 3 different protocols with same OBD2 connector incl. ISO/KWP, VPW, PMW

  5.This K/L Diaqnostic interface & cables work on ISO/KWP (Kev Word Protocol) Iaunched after 1996 only

  6.Supported also ISO9141 protocol

  7.The cables may work with some versions of the Carsoft, but carsoft used a lot of different intercaces during the different versions and also had some custom interfaces.

  8.Product running as virtual comport, like many products it usees a USB to Rs232 converter chip .But under special circumstances this can give some problems regarding time especially on the handshake lines.

  9.Read & erase error code, log data e. g. speed, gasoline, consume engine-rotating(RPM: Rotation Per Minutes).
