Best Cheap HP Elitebook 8740W 8730W Mobile Workstation Laptop nVidia Quadro FX 2800M FX2800M N10E-GLM-B2 DDR3 1GB Graphics Video Card VGA Board ReplacementFree Shipping
100% Brand New, Never Used
90 Days DOA Warranty
Product Description

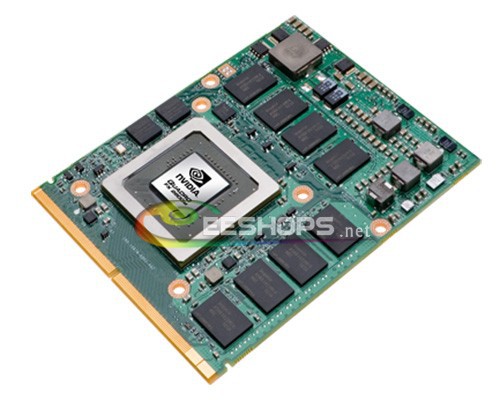

NVIDIA Quadro FX 2800M
The NVIDIA Quadro FX 2800M is a mobile workstation graphics card for high-end laptops. It is based on the Geforce 9800M GT / G92 core but features a higher clock rate and is produced in a 55nm fabrication process versus 65nm of the 9800M GT.
The Quadro FX series of cards are optimized for professional applications like CAD or DCC. OpenGL performance especially should be noticeably better compared to consumer GeForce cards.
The Quadro FX2800M is found in mobile workstations like the M6500 and supports DirectX 10.0 and OpenGL 2.1. In the laptops, the card is able to output up to two displays simultaneously (DisplayPort up to 2560x1600, DVI/HDMI up to 1920x1200). claims a thermal power draw of 65 Watts while Nvidia rates the GPU at 75 Watt TDP.
Due to the relatively high power consumption of 65 to 75 Watts (TDP) and a 10 Watt idle mode, the Quadro FX 2800M is normally only foud in medium to large laptops with powerful cooling solutions.
The NVIDIA Quadro FX 2800M is a mobile workstation graphics card for high-end laptops. It is based on the Geforce 9800M GT / G92 core but features a higher clock rate and is produced in a 55nm fabrication process versus 65nm of the 9800M GT.
The Quadro FX series of cards are optimized for professional applications like CAD or DCC. OpenGL performance especially should be noticeably better compared to consumer GeForce cards.
The Quadro FX2800M is found in mobile workstations like the M6500 and supports DirectX 10.0 and OpenGL 2.1. In the laptops, the card is able to output up to two displays simultaneously (DisplayPort up to 2560x1600, DVI/HDMI up to 1920x1200). claims a thermal power draw of 65 Watts while Nvidia rates the GPU at 75 Watt TDP.
Due to the relatively high power consumption of 65 to 75 Watts (TDP) and a 10 Watt idle mode, the Quadro FX 2800M is normally only foud in medium to large laptops with powerful cooling solutions.
Best Cheap HP Elitebook 8740W 8730W Mobile Workstation Laptop nVidia Quadro FX 2800M FX2800M N10E-GLM-B2 DDR3 1GB Graphics Video Card VGA Board Replacement Features
Brand: Nvidia
Model: FX 2800
Memory Size: 1024 MB
GPU IC: N10E-GLM-B2
Condition: brand new
Type: MXM-B
Warranty: three months
(If removed sticker or sign, no warranty)
Remark:1. The MXM card tested in laptop & 3D mark befor sent.
2. Some of Laptop need updated bios & compatible it.
3. If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.
|
Codename
|
NB10-GLM3
|
|
Architecture
|
G9x
|
|
Pipelines
|
96 - unified
|
|
Core Speed *
|
600 MHz
|
|
Shader Speed *
|
1500 MHz
|
|
Memory Speed *
|
1000 MHz
|
|
Memory Bus Width
|
256 Bit
|
|
Memory Type
|
GDDR3
|
|
Max. Amount of Memory
|
1024 MB
|
|
Shared Memory
|
no
|
|
DirectX
|
DirectX 10, Shader 4.0
|
|
Power Consumption
|
75 Watt
|
|
Transistors
|
754 Million
|
|
technology
|
55 nm
|
|
Features
|
OpenGL 2.1, CUDA, PowerMizer 8.0
|
|
Notebook Size
|
large
|
|
Date of Announcement
|
01.12
|
|
(If removed sticker or sign, no warranty)
Remark:1. The MXM card tested in laptop & 3D mark befor sent.
2. Some of Laptop need updated bios & compatible it.
3. If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.
Package Content
Best Cheap HP Elitebook 8740W 8730W Mobile Workstation Laptop nVidia Quadro FX 2800M FX2800M N10E-GLM-B2 DDR3 1GB Graphics Video Card VGA Board Replacement Free Shipping x 1
