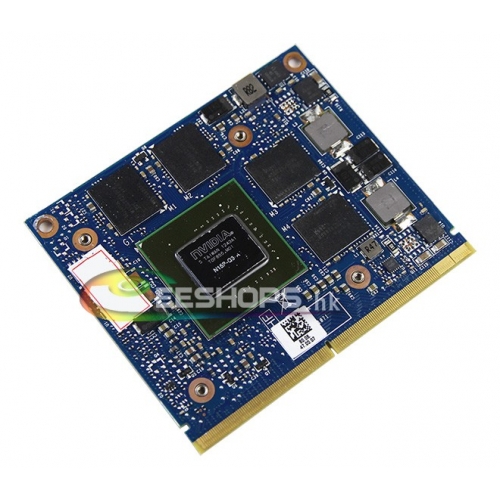

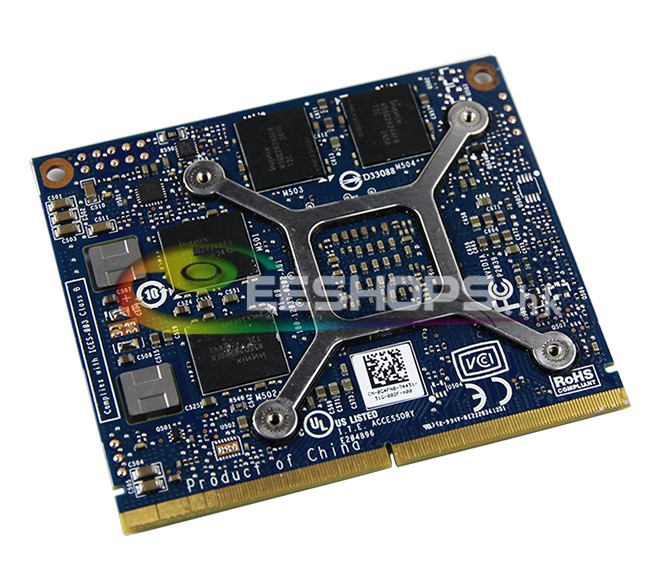

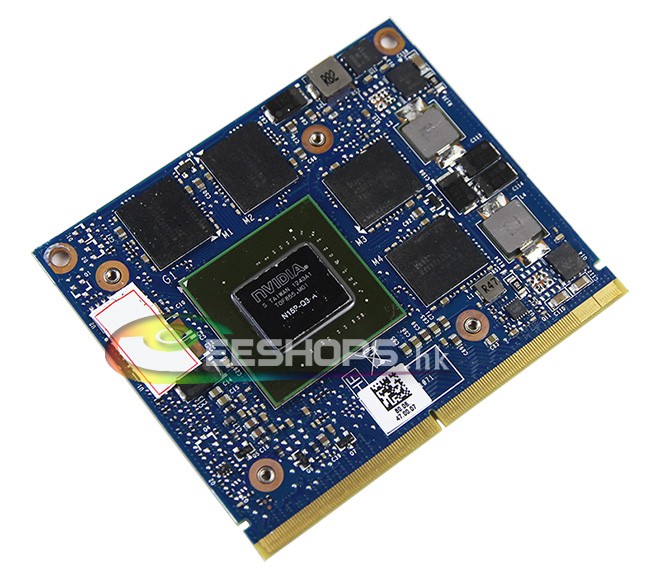

Best Dell Precision M4800 M6800M M4600 M4700 M6700 Workstation Laptop Graphics Video Card NVIDIA Quadro K2100M GDDR5 2GB MXM VGA Board Replacement Free Shipping

Not New, Tested in perfect working condition before shipping

Warranty: DOA 90 days!

NVIDIA Quadro K2100M

The for NVIDIA Quadro K2100M is a DirectX 11 and OpenGL 4.3 compatible graphics card for mobile workstations. It is a Kepler-based GPU built on the GK106 chip with 576 out of 960 shader cores activated and is manufactured in 28nm at TSMC. The Quadro K2100M is built for the Intel Shark Bay generation (Haswell) and is a successor to the Quadro K2000M (Chief River platform). As a new feature, PCIe 3.0 is supported for the first time. The K2100M usually comes with 2 GB GDDR5 VRAM clocked at 750 MHz (3000 MHz effective, 48.0 GB/s).

The Quadro series offers certified drivers that are optimized for stability and performance in professional applications like CAD or DCC. OpenGL performance, for example, should be significantly better than with GeForce graphics cards of similar specifications.

Architecture

The Kepler architecture is the successor to the Fermi architecture that first appeared in laptops with the GeForce 400M series. The GK106 Kepler core offers five shader blocks, called SMX, that are clocked at the same speed as the central core. In the K2100M, 3 of 5 blocks are active leading to the 576 CUDA cores. Although more shader cores are available in the Kepler architecture as compared to the Fermi design, the Kepler shaders are still expected to be up to twice as power efficient. However, due to the missing hot clock of the shader domain, two shaders of a Kepler chip offer similar performance to just one shader of a Fermi chip (as the latter is clocked twice as fast).

Performance

The performance is clearly above the old Quadro K2000M, but slightly below the Quadro K3000M. This places the K2100M near the consumer GT 750M GPU. Therefore, most demanding games of 2013 will run fluently with medium or high details.

Features

The improved feature set now includes support for up to 4 active displays. Furthermore, high resolution monitors of up to 3840 x 2160 pixels can now be connected using DisplayPort 1.2 or HDMI 1.4a if available. HD-Audio codecs, such as Dolby TrueHD and DTS-HD, can be transmitted via bitstream mode through the HDMI port. However, as most laptops will feature Optimus, the integrated GPU will likely have direct control over the display ports and may limit the feature set available by the Nvidia Kepler cards.

Using CUDA or OpenCL 1.2, the cores of the Quadro K2100M can be used for general calculations.

The 5th generation PureVideo HD video processor (VP5) is also integrated in the GK106 core and offers hardware decoding of HD videos. Common codecs such as MPEG-1/2, MPEG-4 ASP, H.264 and VC1/WMV9 are fully supported up to 4K resolutions while VC1 and MPEG-4 are supported up to 1080p. Two streams can be decoded in parallel for features such as Picture-in-Picture. Another novelty is the inclusion of a dedicated video encoding engine similar to Intel QuickSync that can be accessed by the NVENC API.

The power consumption of the Quadro K2100M is rated at a TGP of 55 W including the board and memory components. Therefore, the card is suited for medium-sized notebooks with 15-inch displays or greater.

Best Dell Precision M4800 M6800M M4600 M4700 M6700 Workstation Laptop Graphics Video Card NVIDIA Quadro K2100M GDDR5 2GB MXM VGA Board Replacement Features

Brand: for Nvidia

Model: Quadro K2100M

Memory Size: 2 GB
GPU IC: N15P-Q3-A1

Condition: used

Warranty: three months

(If removed sticker or sign, no warranty)

Remark:1. The MXM card tested in laptop & 3D mark befor sent.

2. Some of Laptop need updated bios & compatible it.

3.  If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.

Package Content
