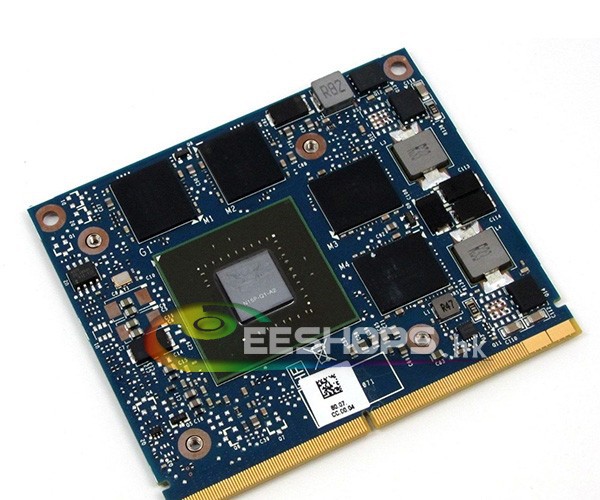

Best Original NVIDIA Quadro K1100M K610M 2GB Mobile Workstation Graphics Video Card for HP ZBOOK 15 17 ElitebBook 8570W 8740W 8760W Replacement Free Shipping
Not New, Tested in perfect working condition before shipping
Warranty: DOA 90 days!
NVIDIA Quadro K1100M
The NVIDIA Quadro K1100M is a DirectX 11 and OpenGL 4.3 compatible graphics card for mobile workstations. It is a Kepler-based GPU built on the GK107 chip with all 384 shader cores activated and manufactured in 28nm at TSMC. The Quadro K1100M is built for the Intel Shark Bay generation (Haswell) and is a successor to the Quadro K1000M (Chief River platform). As a new feature, PCIe 3.0 is supported for the first time. The K1100M usually comes with 2 GB GDDR5 VRAM clocked at 700 MHz (2800 MHz effective, 44.8 GB/s).
The Quadro series offers certified drivers that are optimized for stability and performance in professional applications like CAD or DCC. OpenGL performance, for example, should be significantly better than with GeForce graphics cards of similar specifications.
Architecture
The Kepler architecture is the successor to the Fermi architecture that first appeared in laptops with the GeForce 400M series. The GK107 Kepler core offers two shader blocks, called SMX, that are clocked at the same speed as the central core. In the K1100M, both blocks are active leading to the 384 CUDA cores. Although more shader cores are available in the Kepler architecture as compared to the Fermi design, the Kepler shaders are still expected to be up to twice as power efficient. However, due to the missing hot clock of the shader domain, two shaders of a Kepler chip offer similar performance to just one shader of a Fermi chip (as the latter is clocked twice as fast).
Performance
The performance is similar to the old Quadro K2000M and clearly superior to the Quadro K1000M. This places the K1100M in range of the consumer GeForce GT 740M and GT 645M GPUs. Most demanding games of 2013 will run fluently with medium details and resolutions.
Features
The improved feature set now includes support for up to 4 active displays. Furthermore, high resolution monitors of up to 3840 x 2160 pixels can now be connected using DisplayPort 1.2 or HDMI 1.4a if available. HD-Audio codecs, such as Dolby TrueHD and DTS-HD, can be transmitted via bitstream mode through the HDMI port. However, as most laptops will feature Optimus, the integrated GPU will likely have direct control over the display ports and may limit the feature set available by the Nvidia Kepler cards.
Using CUDA or OpenCL 1.2, the cores of the Quadro K1100M can be used for general calculations.
The 5th generation PureVideo HD video processor (VP5) is also integrated in the GK107 core and offers hardware decoding of HD videos. Common codecs such as MPEG-1/2, MPEG-4 ASP, H.264 and VC1/WMV9 are fully supported up to 4K resolutions while VC1 and MPEG-4 are supported up to 1080p. Two streams can be decoded in parallel for features such as Picture-in-Picture. Another novelty is the inclusion of a dedicated video encoding engine similar to Intel QuickSync that can be accessed by the NVENC API.
The power consumption of the Quadro K1100M is rated at a TGP of 45 W including the board and memory components. Therefore, the card is suited for medium-sized notebooks with 15-inch displays or greater.
Best Original NVIDIA Quadro K1100M K610M 2GB Mobile Workstation Graphics Video Card for HP ZBOOK 15 17 ElitebBook 8570W 8740W 8760W Replacement Free Shipping Features
Brand: Nvidia
Model: Quadro K1100M
Memory Size: 2 GB
GPU IC: N15P-Q1-A2
Memory Type: GDDR5
Condition: Used
Warranty: three months
(If removed sticker or sign, no warranty)
Remark:1. The MXM card tested in laptop & 3D mark befor sent.
2. Some of Laptop need updated bios & compatible it.
3. If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.
| Manufacturer | NVIDIA |
| Quadro K Series | | Quadro K5100M | 1536 @ 771 MHz | 256 Bit @ 3600 MHz | | Quadro K5000M | 1344 @ 706 MHz | 256 Bit @ 3000 MHz | | Quadro K4100M | 1152 @ 706 MHz | 256 Bit @ 3200 MHz | | Quadro K4000M | 960 @ 600 MHz | 256 Bit @ 2800 MHz | | Quadro K3100M | 768 @ 706 MHz | 256 Bit @ 3200 MHz | | Quadro K3000M | 576 @ 654 MHz | 256 Bit @ 2800 MHz | | Quadro K2100M | 576 @ 667 MHz | 128 Bit @ 3000 MHz | | Quadro K1100M | 384 @ 705 MHz | 128 Bit @ 2800 MHz | | Quadro K620M | 384 @ 1029 - 1124 (Boost) MHz | 64 Bit @ 2000 MHz | | Quadro K2000M | 384 @ 745 MHz | 128 Bit @ 1800 MHz | | Quadro K1000M | 192 @ 850 MHz | 128 Bit @ 1800 MHz | | Quadro K610M | 192 @ 954 MHz | 64 Bit @ 2600 MHz | | Quadro K510M | 192 @ 846 MHz | 64 Bit @ 2400 MHz | | Quadro K500M | 192 @ 850 MHz | 64 Bit @ 1800 MHz | |
| Architecture | Kepler |
| Pipelines | 384 - unified |
| Core Speed * | 705 MHz |
| Memory Speed * | 2800 MHz |
| Memory Bus Width | 128 Bit |
| Memory Type | GDDR5 |
| Max. Amount of Memory | 2048 MB |
| Shared Memory | no |
| DirectX | DirectX 11, Shader 5.0 |
| Power Consumption | 45 Watt |
| Transistors | 1270 Million |
| technology | 28 nm |
| Features | Optimus, PhysX, Verde Drivers, CUDA, OpenCL 1.2, 3D Vision, 3DTV Play |
| Notebook Size | medium sized |
| Date of Announcement | 23.07.2013 |
Package Content
Best Original NVIDIA Quadro K1100M K610M 2GB Mobile Workstation Graphics Video Card for HP ZBOOK 15 17 ElitebBook 8570W 8740W 8760W Replacement Free Shipping x 1
