Buy Cheap Best HP EliteBook 8570W 8760W 8560W Mobile Workstation Laptop NVIDIA Quadro FX 880M GDDR3 1GB Graphics Video Card MXM VGA Board ReplacementFree Shipping
Used, Tested before shipping
90 Days DOA Warranty
Product Description

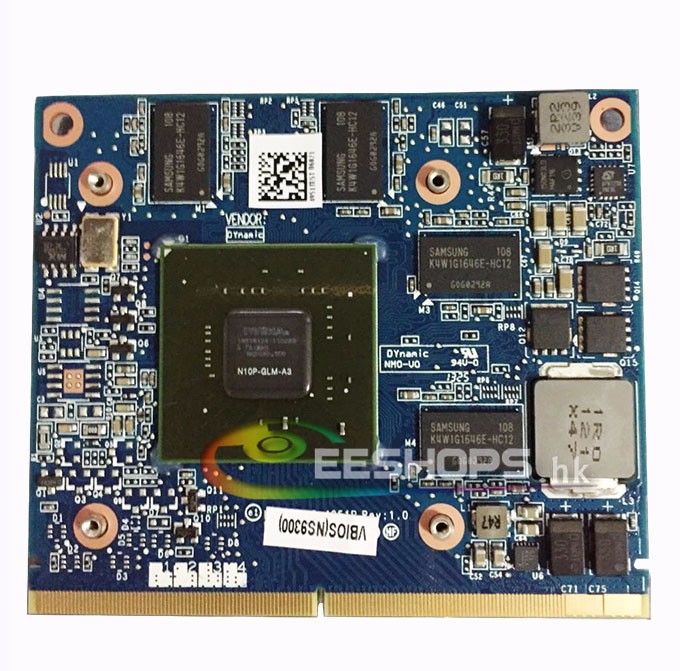

NVIDIA Quadro FX 880M
The NVIDIA Quadro FX 880M is a professional middle class graphics card for mobile workstations (about 15"). It is based on the GeForce GT 330M graphics card with slower clock rates and therefore is a DirectX 10.1 chip that is produced in 40nm.
Due to a special BIOS and professional drivers, the FX 880M should perform noticeably better than a 330M in professional applications (like CAD, DCC, Rendering). Another advantage for professional users are the certified drivers that should ensure a bug free experience with the most common professional applications. Futhermore, the Quadro FX drivers contain profiles for these applications to ensure the best settings (similar to the game profiles in GeForce cards).
The Quadro FX 880M is also based on the GT216 core in 40nm. The shaders are based on the desktop GTX 200 architecture and therefore a bit improved compared to the previous generation cards.
Without load, the Quadro FX 880M is able to downclock to 135 / 270 / 135 MHz (chip / shader / memory clock).
The gaming performance of the FX 880M should be beyond the GT 330M, because of the different drivers. Gamers should choose a GeForce card because of the better game support.
The chip supports Optimus for automatic switching between dedicated and integrated graphics card (e.g. in the new Core i5 CPUs). Still Optimus was for example not integrated in the for Lenovo Thinkpad W510.
Buy Cheap Best HP EliteBook 8570W 8760W 8560W Mobile Workstation Laptop NVIDIA Quadro FX 880M GDDR3 1GB Graphics Video Card MXM VGA Board Replacement Features
| Manufacturer | NVIDIA |
| Quadro FX Series | | Quadro FX 3800M | 128 @ 675 MHz | 256 Bit @ 1000 MHz | | Quadro FX 3700M | 128 @ 550 MHz | 256 Bit @ 800 MHz | | Quadro FX 2800M | 96 @ 600 MHz | 256 Bit @ 1000 MHz | | Quadro FX 3600M | 96 @ 500 MHz | 256 Bit @ 800 MHz | | Quadro FX 2700M | 48 @ 530 MHz | 256 Bit @ 800 MHz | | Quadro FX 880M | 48 @ 550 MHz | 128 Bit @ 790 MHz | | Quadro FX 3500M | 24/8 cores @ 575 MHz | 256 Bit @ 700 MHz | | Quadro FX 2500M | 24/8 cores @ 500 MHz | 256 Bit @ 600 MHz | | Quadro FX 1700M | 32 @ 625 MHz | 128 Bit @ 800 MHz | | Quadro FX 1600M | 32 @ 625 MHz | 128 Bit @ 800 MHz | | Quadro FX 1500M | 20/7 cores @ 375 MHz | 256 Bit @ 500 MHz | | Quadro FX 770M | 32 @ 500 MHz | 128 Bit @ 800 MHz | | Quadro FX 570M | 32 @ 475 MHz | 128 Bit @ 700 MHz | | Quadro FX 370M | 8 @ 580 MHz | 64 Bit @ 700 MHz | | Quadro FX 360M | 16 @ 400 MHz | 64 Bit @ 600 MHz | | Quadro FX 350M | 4/3 cores @ 450 MHz | 64 Bit @ 350 MHz | |
| Codename | N10P-GLM |
| Architecture | GT2xx |
| Pipelines | 48 - unified |
| Core Speed * | 550 MHz |
| Shader Speed * | 1210 MHz |
| Memory Speed * | 790 MHz |
| Memory Bus Width | 128 Bit |
| Memory Type | GDDR3, DDR3 |
| Max. Amount of Memory | 1024 MB |
| Shared Memory | no |
| DirectX | DirectX 10.1, Shader 4.1 |
| Power Consumption | 35 Watt |
| technology | 40 nm |
| Notebook Size | medium sized |
| Date of Announcement | 07.01.2010 |
(If removed sticker or sign, no warranty)
Remark:1. The MXM card tested in laptop & 3D mark befor sent.
2. Some of Laptop need updated bios & compatible it.
3. If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.
Package Content
Buy Cheap Best HP EliteBook 8570W 8760W 8560W Mobile Workstation Laptop NVIDIA Quadro FX 880M GDDR3 1GB Graphics Video Card MXM VGA Board Replacement Free Shipping x 1
