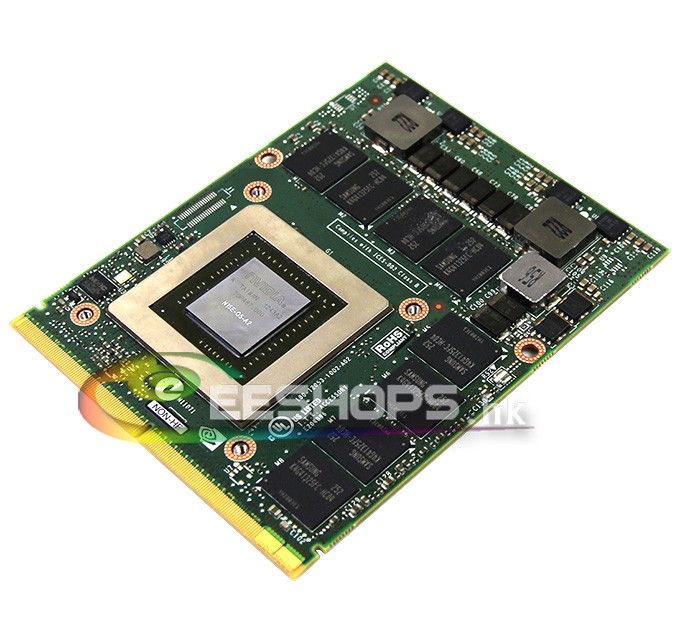

Cheap Best NVIDIA Quadro K5100M GDDR5 8GB Graphics Video Card for Dell Precision M6800 M6700 Mobile Workstation Gaming Laptop VGA Board Replacement Free Shipping
Used, Tested in perfect working condition
90 Days Warranty
Video card only, without any accessories such as X bracket, hearsink or driver disc.
NVIDIA Quadro K5100M
The NVIDIA Quadro K5100M is a high-end, DirectX 11 and OpenGL 4.3 compatible graphics card for mobile workstations. It is a Kepler-based GPU built on the GK104 chip with all 1536 shader cores activated and is manufactured in 28nm at TSMC. The Quadro K5100M is built for the Intel Shark Bay generation (Haswell) and as a successor to the Quadro K5000M (Chief River platform). As a new feature, PCIe 3.0 is supported for the first time. The K5100M usually comes with 8 GB GDDR5 VRAM clocked at 900 MHz (3600 MHz effective, 115.2 GB/s).
The Quadro series offers certified drivers that are optimized for stability and performance in professional applications like CAD or DCC. OpenGL performance, for example, should be significantly better compared to GeForce graphics cards of similar specifications.
Architecture
The Kepler architecture is the successor to the Fermi architecture that first appeared in laptops with the GeForce 400M series. The GK104 Kepler core offers eight shader blocks, called SMX, that are clocked at the same speed as the central core. In the K5100M, all 8 blocks are active leading to the 1536 CUDA cores. Although more shader cores are available in the Kepler architecture as compared to the Fermi design, the Kepler shaders are still expected to be up to twice as power efficient. However, due to the missing hot clock of the shader domain, two shaders of a Kepler chip offer similar performance to just one shader of a Fermi chip (as the latter is clocked twice as fast).
Performance
The 3D gaming performance of the K5100M is clearly above the old Quadro K5000M, but about 10 percent below the slightly higher clocked GTX 780M. Nevertheless, most demanding games of 2013 will run fluently with maxed out details and very high resolutions.
Features
The improved feature set now includes support for up to 4 active displays. Furthermore, high resolution monitors of up to 3840 x 2160 pixels can now be connected using DisplayPort 1.2 or HDMI 1.4a if available. HD-Audio codecs, such as Dolby TrueHD and DTS-HD, can be transmitted via bitstream mode through the HDMI port. However, as most laptops will feature Optimus, the integrated GPU will likely have direct control over the display ports and may limit the feature set available by the Nvidia Kepler cards.
Using CUDA or OpenCL 1.2, the cores of the Quadro K5100M can be used for general calculations.
The 5th generation PureVideo HD video processor (VP5) is also integrated in the GK104 core and offers hardware decoding of HD videos. Common codecs such as MPEG-1/2, MPEG-4 ASP, H.264 and VC1/WMV9 are fully supported up to 4K resolutions while VC1 and MPEG-4 are supported up to 1080p. Two streams can be decoded in parallel for features such as Picture-in-Picture. Another novelty is the inclusion of a dedicated video encoding engine similar to Intel QuickSync that can be accessed by the NVENC API.
Power Consumption
The power consumption of the Quadro K5100M is rated at a TGP of 100 W including the board and memory components. Therefore, the card is suited for large notebooks with 17-inch displays or greater.
Cheap Best NVIDIA Quadro K5100M GDDR5 8GB Graphics Video Card for Dell Precision M6800 M6700 Mobile Workstation Gaming Laptop VGA Board Replacement Features
Brand: Nvidia
Model: Quadro K5100M
Memory Size: 8GB
GPU IC: N15E-Q5-A2
Memory Type: GDDR5
Condition: Used
Warranty: three months
(If removed sticker or sign, no warranty)
Remark:
1. The MXM card tested in laptop & 3D mark befor sent.
2. Some of Laptop need updated bios & compatible it.
3. If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.
| Manufacturer | NVIDIA |
| Quadro K Series | | Quadro K5100M | 1536 @ 771 MHz | 256 Bit @ 3600 MHz | | Quadro K5000M | 1344 @ 706 MHz | 256 Bit @ 3000 MHz | | Quadro K4100M | 1152 @ 706 MHz | 256 Bit @ 3200 MHz | | Quadro K4000M | 960 @ 600 MHz | 256 Bit @ 2800 MHz | | Quadro K3100M | 768 @ 706 MHz | 256 Bit @ 3200 MHz | | Quadro K3000M | 576 @ 654 MHz | 256 Bit @ 2800 MHz | | Quadro K2100M | 576 @ 667 MHz | 128 Bit @ 3000 MHz | | Quadro K1100M | 384 @ 705 MHz | 128 Bit @ 2800 MHz | | Quadro K620M | 384 @ 1029 - 1124 (Boost) MHz | 64 Bit @ 2000 MHz | | Quadro K2000M | 384 @ 745 MHz | 128 Bit @ 1800 MHz | | Quadro K1000M | 192 @ 850 MHz | 128 Bit @ 1800 MHz | | Quadro K610M | 192 @ 954 MHz | 64 Bit @ 2600 MHz | | Quadro K510M | 192 @ 846 MHz | 64 Bit @ 2400 MHz | | Quadro K500M | 192 @ 850 MHz | 64 Bit @ 1800 MHz | |
| Codename | N15E-Q5-A2 |
| Architecture | Kepler |
| Pipelines | 1536 - unified |
| Core Speed * | 771 MHz |
| Memory Speed * | 3600 MHz |
| Memory Bus Width | 256 Bit |
| Memory Type | GDDR5 |
| Max. Amount of Memory | 8192 MB |
| Shared Memory | no |
| DirectX | DirectX 11, Shader 5.0 |
| Power Consumption | 100 Watt |
| Transistors | 3540 Million |
| technology | 28 nm |
| Features | Optimus, PhysX, Verde Drivers, CUDA, OpenCL 1.2, 3D Vision, 3DTV Play |
| Notebook Size | large |
| Date of Announcement | 23.07.2013 |
Package Content
Cheap Best NVIDIA Quadro K5100M GDDR5 8GB Graphics Video Card for Dell Precision M6800 M6700 Mobile Workstation Gaming Laptop VGA Board Replacement Free Shipping x 1
