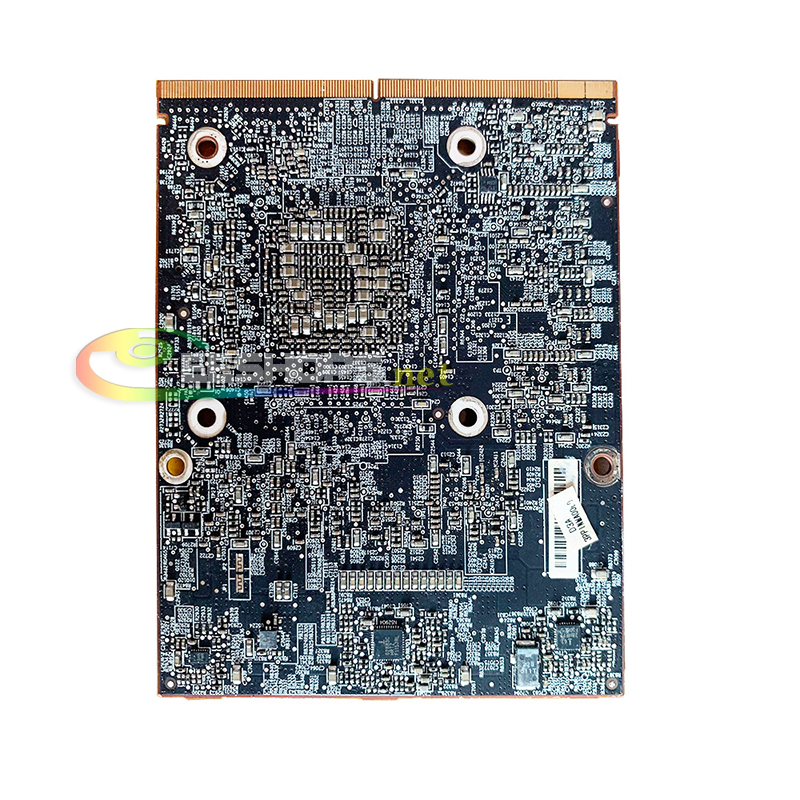

Genuine 1GB 1 GB Graphics Video Card Replacement for Apple iMac 2011 27" MC814LL/A MD063LL/A A1311 A1312 Desktop Computer AMD Radeon HD 6970M 109-C29657-10 MXM VGA Board Repair Parts Free Shipping

$78.99

  • Model: HD6970MC-1GB-Original
  • Quantity:
Free shipping

Description

Buy Cheap Genuine 1GB 1 GB Graphics Video Card Replacement for Apple iMac 2011 27" MC814LL/A MD063LL/A A1311 A1312 Desktop Computer AMD Radeon HD 6970M 109-C29657-10 MXM VGA Board Repair Parts Free Shipping


Original, Used, Pulled Not New, Tested in Perfect Working Condition.

Three Months Warranty

Product Description:


  • Condition: Used
  • Comes with the card only, without any accessaries like the headsink or drive disc.
  • GDDR5 1 GB Memory, Best choice to replace the old faulty card in iMac 2011.
  • Three Months Warranty.

The AMD Mobility Radeon HD 6970M (or sometimes called ATI Mobility Radeon HD 6970) is a high-end graphics card normally reserved for big and heavy laptops. It is based on the desktop HD 6850 graphics card and therefore features UVD3 video processing and Eyefinity+. The codename of this GPU is Blackcomb XT and it should have comparable power consumption results as the GeForce GTX 480M.

The 960 Stream processors are still based on the "old" 5D architecture similar to the 5000 series. Therefore, the number of shaders is not comparable to the 1D cores of current Nvidia GPUs. The Tessellation performance should be improved (like the desktop 6800 series) with the new cards. The Stream processors can be used with DirectX 11, OpenGL 4.1, DirectCompute 11 and OpenCL. With the latter two, the 6970M can also be used for general computations such as transcoding videos.

The 3D performance of this card lies between the GeForce GTX 470M and 485M, both of which are high-end notebook GPUs. In our tests, the 6970M is on average 33% faster than a GeForce GTX 480M, but the newer GTX 485M is still about 12% faster than the AMD card. Compared to the previous generation ATI Mobility Radeon HD 5870, the Radeon 6970M is about 50% faster, but has greater power demands.

For gamers, this means that the Radeon HD 6970M is able to fluently display all most modern games in high detail settings. Only Crysis and Metro 2033 stutter in the highest detail settings at 1920x1080 resolution (see below).

The new UVD3 video decoder supports the decoding of MPEG-4 AVC/H.264, VC-1, MPEG-2, Flash and now also Multi-View Codec (MVC) and MPEG-4 part 2 (DivX, xVid) HD videos on the graphics card.

Furthermore, the HD 6900M series integrates an HD audio controller to transmit HD Audio (TrueHD or DTS Master Audio) over HDMI and/or DisplayPort (e.g. for Blu-Ray videos).

The AMD HD3D Technology offers support for Blu-Ray 3D and 3D displays (integrated and external). However, the solution is not as mature as Nvidia's 3D Vision.

Thanks to Eyefinity, the graphics chip is able to theoretically drive up to 6 monitors simultaneously. However, this only works if the laptop features enough video outputs.

The power consumption of the 6790M should be similar to the Nvidia GeForce GTX 480M / 485M and is therefore at about 100 Watts when considering the MXM board and the 2 GB GDDR5 memory. Eurocom, for example, states that the TDP ranges from about 75-100 Watts. As a result, the card is only suited for large laptops with good cooling solutions.

Genuine 1GB 1 GB Graphics Video Card Replacement for Apple iMac 2011 27

Genuine 1GB 1 GB Graphics Video Card Replacement for Apple iMac 2011 27" MC814LL/A MD063LL/A A1311 A1312 Desktop Computer AMD Radeon HD 6970M 109-C29657-10 MXM VGA Board Repair Parts Features:


Brand: AMD
Model: HD 6970M
Memory Size: 1 GB
Memory Type: GDDR5
Condition: Used
Warranty: three months
(If removed sticker or sign, no warranty)

Remark:

1. The MXM card tested in laptop & 3D mark befor sent.
2. Some of Laptop need updated bios & compatible it.
3. If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.

Manufacturer AMD
Radeon HD 6900M Series
Radeon HD 6990M Crossfire (compare) 2240 @ 715 MHz 256 Bit @ 900 MHz
Radeon HD 6970M Crossfire (compare) 1920 @ 680 MHz 256 Bit @ 900 MHz
Radeon HD 6990M (compare) 1120 @ 715 MHz 256 Bit @ 900 MHz
Radeon HD 6970M 960 @ 680 MHz 256 Bit @ 900 MHz
Radeon HD 6950M (compare) 960 @ 580 MHz 256 Bit @ 900 MHz
Codename Blackcomb XT
Architecture Terascale 2
Pipelines 960 - unified
Core Speed 680 MHz
Memory Speed 900 MHz
Memory Bus Width 256 Bit
Memory Type GDDR5
Max. Amount of Memory 2048 MB
Shared Memory no
DirectX DirectX 11, Shader 5.0
Transistor Count 1700 Million
technology 40 nm
Notebook Size large
Date of Announcement 06.01.2011 = 3192 days old

Genuine 1GB 1 GB Graphics Video Card Replacement for Apple iMac 2011 27

Package Content


Genuine 1GB 1 GB Graphics Video Card Replacement for Apple iMac 2011 27" MC814LL/A MD063LL/A A1311 A1312 Desktop Computer AMD Radeon HD 6970M 109-C29657-10 MXM VGA Board Repair Parts Free Shipping x 1

Additional Information

  • Model: HD6970MC-1GB-Original

Current Reviews:0


There are currently no product reviews.
NOTE: Reviews require prior approval before they will be displayed

This product was added to our catalog on Monday 22 April, 2024.
