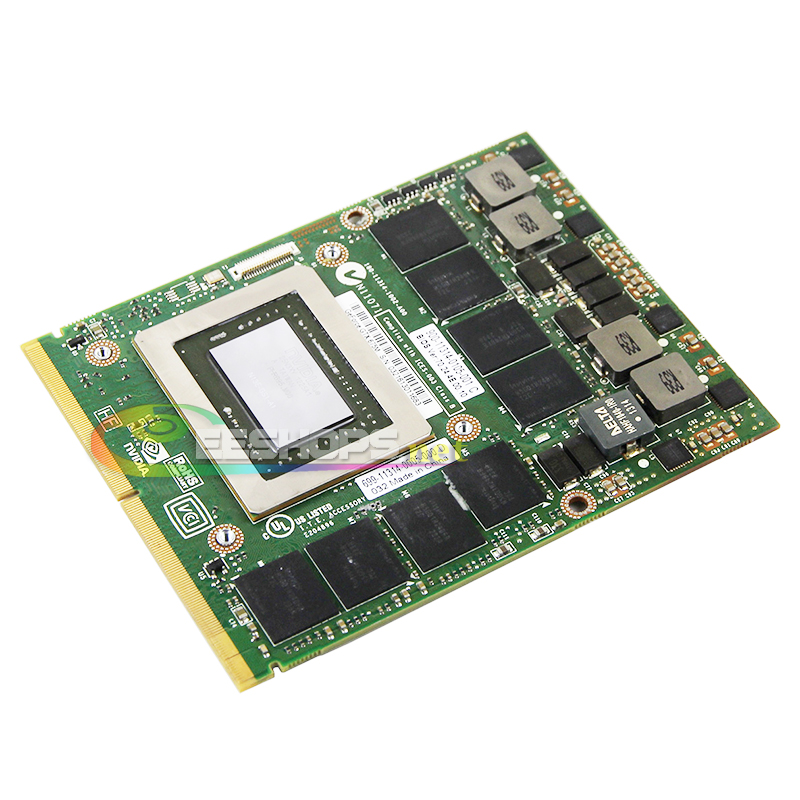

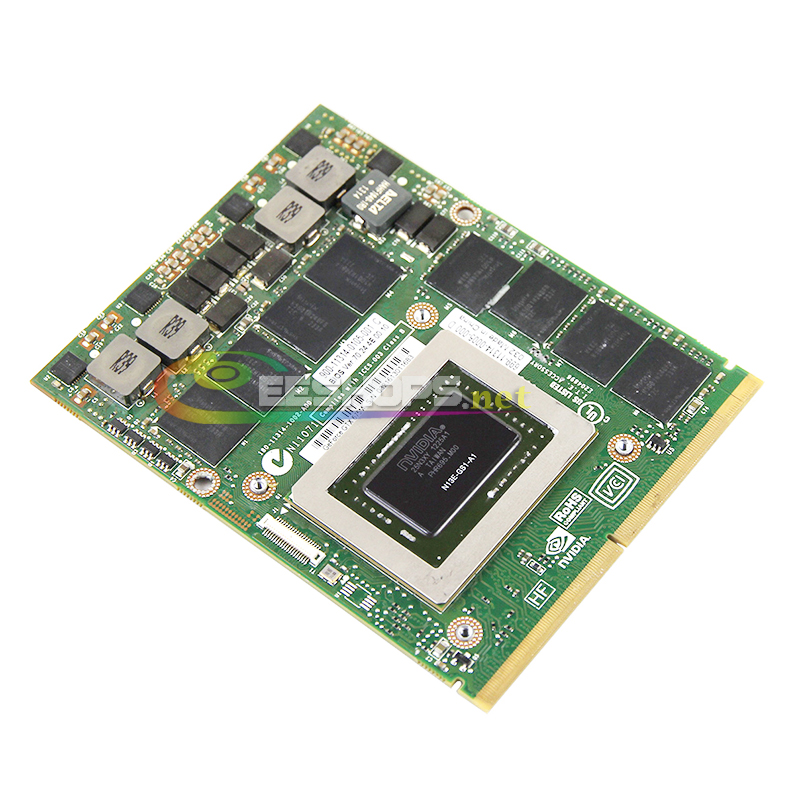

Buy Cheap Genuine 2GB Graphics Video Card Replacement for Dell Alienware M15X R1 R2 M17X R1 R2 R3 R4 M18X R1 R2 Gaming Laptop nVidia Geforce GTX 675M GTX675M GDDR5 2 GB N13E-GS1-A1 MXM VGA Board Repair Parts Free Shipping

Original, Used, Pulled Not New, Tested in Perfect Working Condition.

Three Months Warranty

Product Description:

• Condition: Used
• Comes with the card only, without any accessaries like the headsink or drive disc.
• GDDR5 2GB Memory, Best choice to upgrade or replace the old card in laptop.
• Three Months Warranty.

The NVIDIA GeForce GTX 675M is a the fastest single-GPU laptop graphics card as of March 2012. It is based on the GF114 Fermi core and is essentially a renamed version of th GeForce GTX 580M but with higher core clock rates. Therefore, it is still manufactured in 40nm at TSMC.

GF114 architecture

The GF114 core is a power-optimized version of the GF104 used in the GTX 470M, but with no major architectural changes. Therefore, the performance per MHz of the GF114 stays the same even though Nvidia was able to clock the shaders higher while still remaining in the same power scale. The GTX 675M offers 384 cores at a clock speed of 620 MHz. More informations on the similar GF104 architecture can be found on the GeForce GTX 485M page.

Performance

Due to similar clock speeds, the GeForce GTX 675M is as fast as the old GTX 580M and is this noticeably more powerful than the GTX 670M and AMD Radeon HD 6970M. Current games as of 2011 should therefore run fluently in Full HD resolution and maximum details. Only a few very demanding games, such as Metro 2033, may need slightly reduced graphical settings for smoother gameplay.

Features

Similar to the older GF104 chip, the GF114 supports Blu-Ray Bitstream HD Audio output via HDMI. This means the GPU can transfer, for example, Dolby True HD or DTS-HD bitstream without quality loss to a HiFi receiver.

The GTX 670M offers PureVideo HD technology for video decoding. The included Video Processor 4 (VP4) supports feature set C and is able to fully decode MPEG-1, MPEG-2, MPEG-4 Part 2 (MPEG-4 ASP - e.g., DivX or Xvid), VC-1/WMV9, and H.264 (VLD, IDCT, Motion Compensation, and Deblocking).

Furthermore, the GPU is able to decode two 1080p streams simultaneously (e.g., Blu-Ray Picture-in-Picture).

Through CUDA, OpenCL, and DirectCompute 2.1 support, the GeForce GTX 675M can be used for general calculations. For example, the stream processor can encode videos considerably faster than can many modern CPUs. Furthermore, physics calculations can be done by the GPU using PhysX if supported (e.g., in Mafia 2 or Metro 2033).

3D Vision enables the laptop to send 3D content (3D games, 3D Web Streaming, 3D photos, 3D Blu-Rays) to a built-in 3D-enabled screen or an external 3D TV if supported by the laptop manufacturer.

The power consumption of the GeForce GTX 675M should be the same as of the old GTX 580M, which is rumored to be about 100 Watt (TDP including the MXM board and memory). If not under load, the chip is clocked at 50/100 MHz (chip/shader) and 200/400 MHz in 2D and 3D mode, respectively, for power-saving purposes. Furthermore, the 600M series supports Optimus to automatically switch between the Intel integrated graphics card and the Nvidia GPU. Whether or not a laptop includes this feature is dependent on the manufacturer.

Genuine 2GB Graphics Video Card Replacement for Dell Alienware M15X R1 R2 M17X R1 R2 R3 R4 M18X R1 R2 Gaming Laptop nVidia Geforce GTX 675M GTX675M GDDR5 2 GB N13E-GS1-A1 MXM VGA Board Repair Parts Features:

Brand: Nvidia
Model: GTX 675M
Memory Size: 2 GB
GPU IC: N13E-GS1-A1
Condition: Used
Type: MXM 3.0B
Warranty: Three months
(If removed sticker or sign, no warranty)

Remark:

1. The MXM card tested in laptop & 3D mark befor sent.
2. Some of Laptop need updated bios & compatible it.
3. If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.

Manufacturer NVIDIA
GeForce GTX 600M Series
GeForce GTX 680M SLI (compare) 2688 @ 720 MHz 2x 256 Bit @ 3600 MHz
GeForce GTX 680MX (compare) 1536 @ 720 MHz 256 Bit @ 5000 MHz
GeForce GTX 675M SLI (compare) 768 @ 620 MHz 256 Bit @ 3000 MHz
GeForce GTX 680M (compare) 1344 @ 720 MHz 256 Bit @ 3600 MHz
GeForce GTX 670MX SLI (compare) 1920 @ 600 MHz 2x 192 Bit @ 2800 MHz
GeForce GTX 675MX (compare) 960 @ 600 MHz 256 Bit @ 3600 MHz
GeForce GTX 675M 384 @ 620 MHz 256 Bit @ 3000 MHz
GeForce GTX 670MX (compare) 960 @ 600 MHz 192 Bit @ 2800 MHz
GeForce GTX 670M (compare) 336 @ 598 MHz 192 Bit @ 3000 MHz
GeForce GTX 660M (compare) 384 @ 835 MHz 128 Bit @ 4000 MHz
Codename N13E-GS1
Architecture Fermi
Pipelines 384 - unified
Core Speed 620 MHz
Shader Speed 1240 MHz
Memory Speed 3000 MHz
Memory Bus Width 256 Bit
Memory Type GDDR5
Max. Amount of Memory 2048 MB
Shared Memory no
DirectX DirectX 11, Shader 5.0
Transistor Count 1950 Million
technology 40 nm
Features Optimus, SLI, PhysX, Verde Drivers, CUDA, 3D Vision, 3DTV Play
Notebook Size large
Date of Announcement 22.03.2012 = 2754 days old

Package Content

Genuine 2GB Graphics Video Card Replacement for Dell Alienware M15X R1 R2 M17X R1 R2 R3 R4 M18X R1 R2 Gaming Laptop nVidia Geforce GTX 675M GTX675M GDDR5 2 GB N13E-GS1-A1 MXM VGA Board Repair Parts Free Shipping x 1
