Genuine New HP Elitebook 8540W 8560W 8570W Mobile Workstation Laptop Graphics Video Card AMD ATI FirePro M4000 MXM GDDR5 1GB VGA Board Replacement Free Shipping
Brand New, Never Used
90 Days Warranty
Product Description:
-
-
- Manufacturer: AMD
- Condition: New
- Model: M4000 1G
- Come with the card only, without any accessaries
ã€

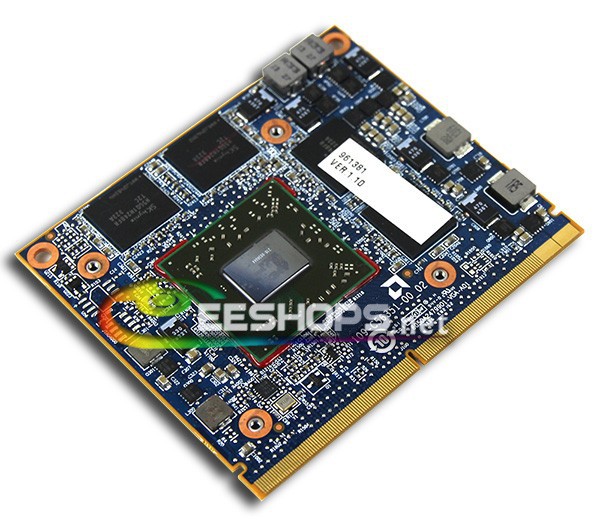

AMD FirePro M4000
The AMD FirePro M4000 is a middle-class mobile workstation graphics card with DirectX 11 support. It is based on the same Cape-Verde-chip found in the Radeon HD 7700M series.
Compared to the Radeon consumer line, the FirePro offers certified drivers for professional 3D applications. Due to optimizations and some unlocked features, the performance when using professional applications is more efficient with the FirePro M4000.
The integrated 512 Stream processors of the FirePro M4000 are based on the new GCN-architecture.
The gaming performance should be slightly faster than the Radeon HD 7750M. Overall, the card is able to run modern games (2012) in medium details and HD resolution fluently.
The FirePro M4000 also supports automatic graphics switching between the integrated GPU and discrete GPU. Called Enduro, the technology supersedes fir AMD's Dynamic Switchable Graphics and is similar to Nvidia's Optimus. Furthermore, the card can directly support up to 6 connected monitors using Eyefinity Technology if Enduro is disabled.
Other features of the series include ZeroCore for reducing power consumption when the display is turned off and Power Gating to power down areas of the chip that are not used. PowerTune allows automatic overclocking and underclocking of the graphics card as long as the GPU is within its TDP range. For example, the chip may be underclocked when running FurMark and OCCT, but will overclock in certain games like Lost Planet, Crysis or Resident Evil 5.
The integrated HD audio processor is able to transmit HD Audio (TrueHD or DTS Master Audio) over HDMI and DisplayPort (e.g., for Blu-Ray videos). Additionally, it now allows audio to output simultaneously and in parallel to multiple devices with the new Discrete Digital Multipoint Audio (DDMA) feature.
The power consumption of the M4000 should be best suited for notebooks 15 inches or greater.
Genuine New HP Elitebook 8540W 8560W 8570W Mobile Workstation Laptop Graphics Video Card AMD ATI FirePro M4000 MXM GDDR5 1GB VGA Board Replacement Features
Manufacturer
|
AMD
|
FirePro M Series
|
|
|
|
FirePro M4000
|
512 @ 600 MHz
|
128 Bit @ 4500 MHz
|
|
|
|
|
Codename
|
Cape Verde GLM
|
Architecture
|
GCN
|
Pipelines
|
512 - unified
|
Core Speed *
|
600 MHz
|
Memory Speed *
|
4500 MHz
|
Memory Bus Width
|
128 Bit
|
Memory Type
|
GDDR5
|
Max. Amount of Memory
|
2048 MB
|
Shared Memory
|
no
|
DirectX
|
DirectX 11, Shader 5.0
|
Transistors
|
1500 Million
|
technology
|
28 nm
|
Features
|
OpenCL 1.2, 32 TMUs, 16 ROPs
|
Notebook Size
|
medium sized
|
Date of Announcement
|
01.07.2012
|
Remark:
1. The MXM card tested in laptop & 3D mark befor sent.
2. Some of Laptop need updated bios & compatible it.
3. If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.
4. Pls paste the heat-sink sticker as below photo before install the card
5. come with the card only, without any accessaries like the headsink or drive disk.
Package Content
Genuine New HP Elitebook 8540W 8560W 8570W Mobile Workstation Laptop Graphics Video Card AMD ATI FirePro M4000 MXM GDDR5 1GB VGA Board Replacement Free Shipping x 1
