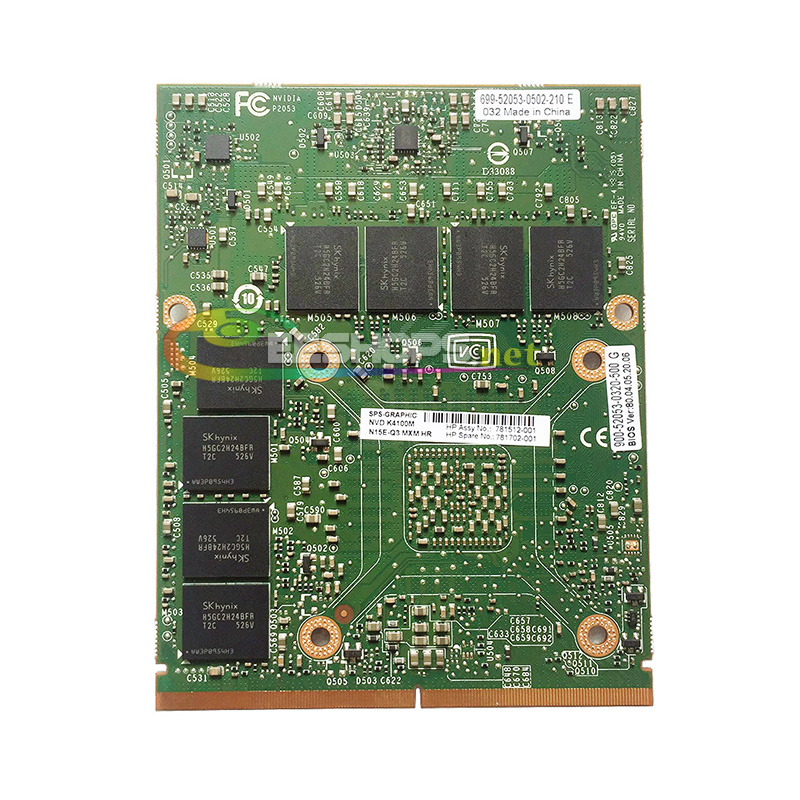

Buy Cheap Genuine New Laptop 4GB GDDR5 Graphics Video Card NVIDIA Quadro K4100M for Dell Precision M6600 M6700 M6800 Mobile Workstation N15E-Q3-A2 4 GB MXM VGA Board Upgrade Replacement Repair Parts Free Shipping
Brand New, Never used. 100% Working Perfectly.
Three Months Warranty
Product Description:
- Condition: New
- comes with the card only, without any accessaries like the headsink or drive disc.
- GDDR5 4GB Memory, Best choice to replace the old card in Dell/HP Mobile Workstation.
- Three Months Warranty.
The NVIDIA Quadro K4100M is a high-end, DirectX 11 and OpenGL 4.3 compatible graphics card for mobile workstations. It is a Kepler-based GPU built on the GK104 chip with 1152 out of 1536 shader cores active and is manufactured in 28nm at TSMC. The Quadro K4100M is built for the Intel Shark Bay generation (Haswell) and is a successor to the Quadro K4000M (Chief River platform). As a new feature, PCIe 3.0 is supported for the first time. The K4100M usually comes with 4 GB GDDR5 VRAM clocked at 800 MHz (3200 MHz effective, 102.4 GB/s).
The Quadro series offers certified drivers that are optimized for stability and performance in professional applications like CAD or DCC. OpenGL performance, for example, should be significantly better than with GeForce graphics cards of similar specifications.
Architecture
The Kepler architecture is the successor to the Fermi architecture that first appeared in laptops with the GeForce 400M series. The GK104 Kepler core offers eight shader blocks, called SMX, that are clocked at the same speed as the central core. In the K4100M, 6 of 8 blocks are active leading to the 1152 CUDA cores. Although more shader cores are available in the Kepler architecture as compared to the Fermi design, the Kepler shaders are still expected to be up to twice as power efficient. However, due to the missing hot clock of the shader domain, two shaders of a Kepler chip offer similar performance to just one shader of a Fermi chip (as the latter is clocked twice as fast).
Performance
The performance is clearly above the old Quadro K4000M and similar to the Quadro K5000M. In 3D games, the K4100M offers a performance slightly above the consumer GeForce GTX 770M. Therefore, most demanding games of 2013 will run fluently with maxed out details.
Features
The improved feature set now includes support for up to 4 active displays. Furthermore, high resolution monitors of up to 3840 x 2160 pixels can now be connected using DisplayPort 1.2 or HDMI 1.4a if available. HD-Audio codecs, such as Dolby TrueHD and DTS-HD, can be transmitted via bitstream mode through the HDMI port. However, as most laptops will feature Optimus, the integrated GPU will likely have direct control over the display ports and may limit the feature set available by the Nvidia Kepler cards.
Using CUDA or OpenCL 1.2, the cores of the Quadro K4100M can be used for general calculations.
The 5th generation PureVideo HD video processor (VP5) is also integrated in the GK104 core and offers hardware decoding of HD videos. Common codecs such as MPEG-1/2, MPEG-4 ASP, H.264 and VC1/WMV9 are fully supported up to 4K resolutions while VC1 and MPEG-4 are supported up to 1080p. Two streams can be decoded in parallel for features such as Picture-in-Picture. Another novelty is the inclusion of a dedicated video encoding engine similar to Intel QuickSync that can be accessed by the NVENC API.
Power Consumption
The power consumption of the Quadro K4100M is rated at a TGP of 100 W including the board and memory components. Therefore, the card is only suited for large notebooks with 17-inch displays or greater.
Genuine New Laptop 4GB GDDR5 Graphics Video Card NVIDIA Quadro K4100M for Dell Precision M6600 M6700 M6800 Mobile Workstation N15E-Q3-A2 4 GB MXM VGA Board Upgrade Replacement Repair Parts Features:
Brand: Nvidia
Model: Quadro K4100M
Memory Size: 4 GB
GPU IC: N15E-Q3-A2
Memory Type: GDDR5
Condition: New
Warranty: three months
(If removed sticker or sign, no warranty)
Remark:
1. The MXM card tested in laptop & 3D mark befor sent.
2. Some of Laptop need updated bios & compatible it.
3. If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.
Manufacturer NVIDIA
Quadro K Series
Quadro K4100M 1152 @ 706 MHz 256 Bit @ 3200 MHz
Codename N15E-Q3-A2
Architecture Kepler
Pipelines 1152 - unified
Core Speed 706 MHz
Memory Speed 3200 MHz
Memory Bus Width 256 Bit
Memory Type GDDR5
Max. Amount of Memory 4096 MB
Shared Memory no
DirectX DirectX 11, Shader 5.0
Transistor Count 3540 Million
technology 28 nm
Features Optimus, PhysX, Verde Drivers, CUDA, OpenCL 1.2, 3D Vision, 3DTV Play
Notebook Size large
Date of Announcement 23.07.2013 = 2262 days old
Package Content
Genuine New Laptop 4GB GDDR5 Graphics Video Card NVIDIA Quadro K4100M for Dell Precision M6600 M6700 M6800 Mobile Workstation N15E-Q3-A2 4 GB MXM VGA Board Upgrade Replacement Repair Parts Free Shipping x 1
