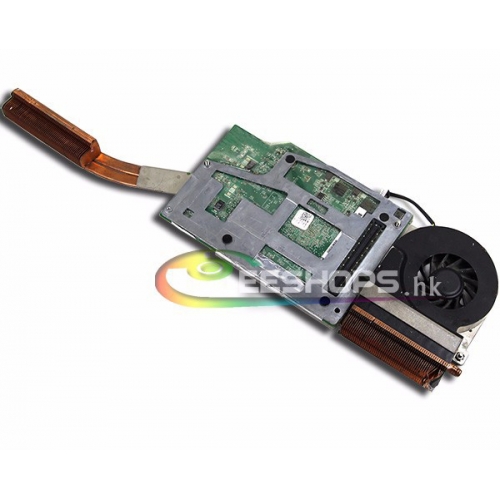

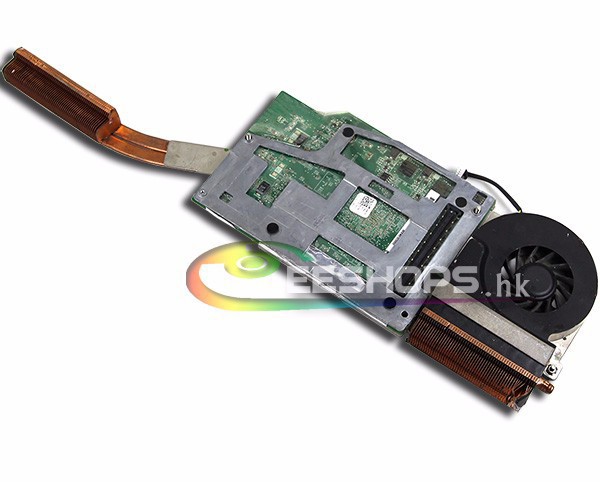

Nvidia Quadro FX2800M GDDR3 1GB Graphics Video Card for Dell Precision M6400 M6500 Workstation Laptop W/ Radiator Heatsink & Fan Complete ReplacementFree Shipping
Not New, Pulled, Tested before shipping
90 Days DOA Warranty
Product Description
NVIDIA Quadro FX 2800M
The NVIDIA Quadro FX 2800M is a mobile workstation graphics card for high-end laptops. It is based on the Geforce 9800M GT / G92 core but features a higher clock rate and is produced in a 55nm fabrication process versus 65nm of the 9800M GT.
The Quadro FX series of cards are optimized for professional applications like CAD or DCC. OpenGL performance especially should be noticeably better compared to consumer GeForce cards.
The Quadro FX2800M is found in mobile workstations like the M6500 and supports DirectX 10.0 and OpenGL 2.1. In the laptops, the card is able to output up to two displays simultaneously (DisplayPort up to 2560x1600, DVI/HDMI up to 1920x1200). claims a thermal power draw of 65 Watts while Nvidia rates the GPU at 75 Watt TDP.
Due to the relatively high power consumption of 65 to 75 Watts (TDP) and a 10 Watt idle mode, the Quadro FX 2800M is normally only foud in medium to large laptops with powerful cooling solutions.
The NVIDIA Quadro FX 2800M is a mobile workstation graphics card for high-end laptops. It is based on the Geforce 9800M GT / G92 core but features a higher clock rate and is produced in a 55nm fabrication process versus 65nm of the 9800M GT.
The Quadro FX series of cards are optimized for professional applications like CAD or DCC. OpenGL performance especially should be noticeably better compared to consumer GeForce cards.
The Quadro FX2800M is found in mobile workstations like the M6500 and supports DirectX 10.0 and OpenGL 2.1. In the laptops, the card is able to output up to two displays simultaneously (DisplayPort up to 2560x1600, DVI/HDMI up to 1920x1200). claims a thermal power draw of 65 Watts while Nvidia rates the GPU at 75 Watt TDP.
Due to the relatively high power consumption of 65 to 75 Watts (TDP) and a 10 Watt idle mode, the Quadro FX 2800M is normally only foud in medium to large laptops with powerful cooling solutions.
Cheap Nvidia Quadro FX2800M GDDR3 1GB Graphics Video Card for Dell Precision M6400 M6500 Workstation Laptop W/ Radiator Heatsink & Fan Complete Replacement Features
Brand: Nvidia
Model: FX 2800
Memory Size: 1024 MB
GPU IC: N10E-GLM-B2
Condition: Used
Type: MXM-B
Warranty: three months
| Codename | NB10-GLM3 | | Architecture | G9x | | Pipelines | 96 - unified | | Core Speed * | 600 MHz | | Shader Speed * | 1500 MHz | | Memory Speed * | 1000 MHz | | Memory Bus Width | 256 Bit | | Memory Type | GDDR3 | | Max. Amount of Memory | 1024 MB | | Shared Memory | no | | DirectX | DirectX 10, Shader 4.0 | | Power Consumption | 75 Watt | | Transistors | 754 Million | | technology | 55 nm | | Features | OpenGL 2.1, CUDA, PowerMizer 8.0 | | Notebook Size | large | | Date of Announcement | 01.12 | |
(If removed sticker or sign, no warranty)
Remark:1. The MXM card tested in laptop & 3D mark befor sent.
2. Some of Laptop need updated bios & compatible it.
3. If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.
Package Content
Nvidia Quadro FX2800M GDDR3 1GB Graphics Video Card for Dell Precision M6400 M6500 Workstation Laptop W/ Radiator Heatsink & Fan Complete Replacement Free Shipping x 1
