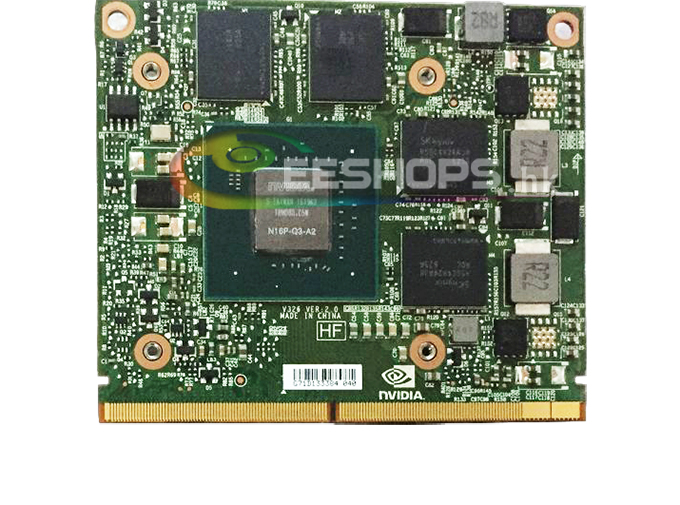

Nvidia Quadro M2000M N16P-Q3-A2 GDDR5 4GB Graphics Video Card for Dell Precision M4800 M6600 M6700 M6800 Mobile Workstation Laptop VGA Board Free Shipping
Not New, Tested in perfect working condition before shipping
Warranty: DOA 90 days!
NVIDIA Quadro M2000M
The 28 nm Nvidia Quadro M2000M is a mid-range DirectX 12 (FL 11_0) and OpenGL 4.5-compatible graphics card for mobile workstations. It is a (first generation) Maxwell-based GPU built on the GM07 chip with 640 shader cores. Therefore, the GPU is similar to the consumer Nvidia GeForce GTX 960M or 950M. The Quadro M2000M is built for the Intel Skylake generation and is the successor to the Kepler-based Quadro K2100M. The M2000M typically comes with 4 GB GDDR5 VRAM clocked at 1250 MHz (5000 MHz effective at 80 GB/s compared to 48 GB/s on the K2100M).
The Quadro series offers certified drivers that are optimized for stability and performance in professional applications like CAD or DCC. OpenGL performance, for example, should be significantly better compared to GeForce graphics cards of similar specifications.
Performance
As the exact clock speed of the M2000M is still not known, we can only speculate on the performance of the card. However, we do know that it is a mid-range model from the mobile 2015 Quadro line based on the same chip as the GeForce GTX 960M or 950M. Therefore, it should be faster than the old Quadro K2100M.
Using CUDA (Compute Capability 5.0) or OpenCL 1.2, the cores of the Quadro M2000M can be used for general calculations.
Power Consumption
The power consumption of the Quadro M2000M is rated for the same TGP of 55 Watt as the K2100M, including the board and memory components. Therefore, the card is suited for 15-inch notebooks and larger.
Nvidia Quadro M2000M N16P-Q3-A2 GDDR5 4GB Graphics Video Card for Dell Precision M4800 M6600 M6700 M6800 Mobile Workstation Laptop VGA Board Features
Brand: Nvidia
Model: M2000M
Memory Size: 4 GB
GPU IC: N16P-Q3-A2
Memory Type: GDDR5
Condition: Used
Warranty: three months
(If removed sticker or sign, no warranty)
Remark:1. The MXM card tested in laptop & 3D mark befor sent.
2. Some of Laptop need updated bios & compatible it.
3. If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.
| Manufacturer | NVIDIA |
| Quadro M Series | | | | | | Quadro M2000M | 640 @ 1038 - 1197 (Boost) MHz | 128 Bit @ 5000 MHz | | | | | |
| Architecture | Maxwell |
| Pipelines | 640 - unified |
| Core Speed * | 1038 - 1197 (Boost) MHz |
| Memory Speed * | 5000 MHz |
| Memory Bus Width | 128 Bit |
| Memory Type | GDDR5 |
| Max. Amount of Memory | 4096 MB |
| Shared Memory | no |
| DirectX | DirectX 12 (FL 11_0), Shader 5.0 |
| Power Consumption | 55 Watt |
| Transistors | 1870 Million |
| technology | 28 nm |
| Features | Optimus, PhysX, 3D Vision Pro, nView, Optimus |
| Notebook Size | large |
| Date of Announcement | 02.10.2015 |
Package Content
Nvidia Quadro M2000M N16P-Q3-A2 GDDR5 4GB Graphics Video Card for Dell Precision M4800 M6600 M6700 M6800 Mobile Workstation Laptop VGA Board Free Shipping x 1
