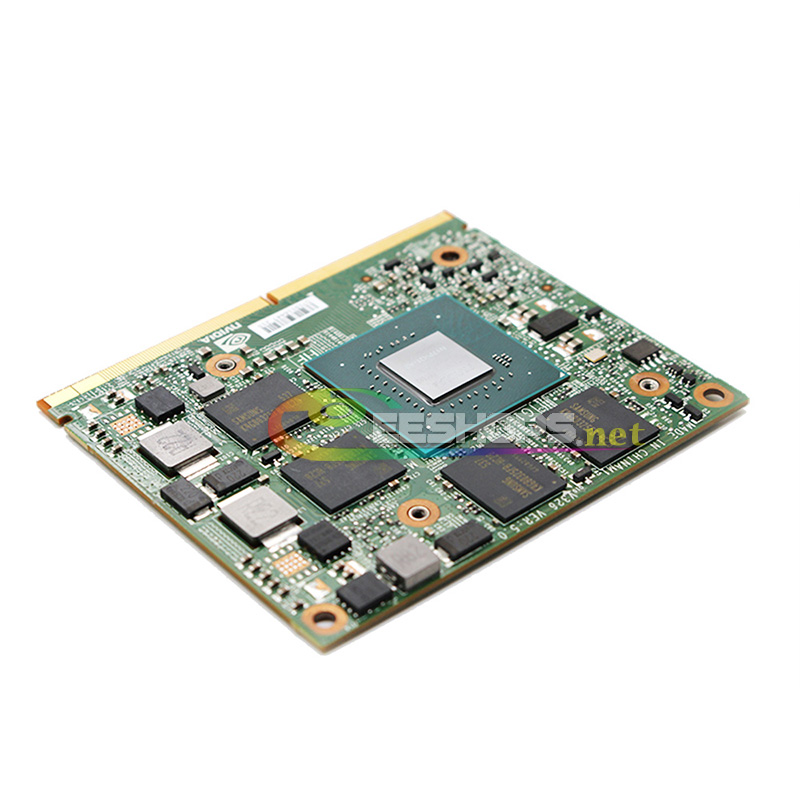

Buy Cheap Original 4GB Graphics Video Card Replacement for Dell Precision M7520 M7510 M4800 M6700 M6800 HP ElitebBook 8760W 8770W Mobile Workstation Laptop Nvidia Quadro M1200M GDDR5 4 GB MXM Board Repair Parts Free Shipping
Original, Used, Pulled Not New, Tested in Perfect Working Condition.
Three Months Warranty
Product Description:
- Condition: Used
- comes with the card only, without any accessaries like the headsink or drive disc.
GDDR5 4GB Memory, Best choice to upgrade or replace the old card in HP/Dell/Lenovo Mobile Workstation Laptop. - Three Months Warranty.
The 28 nm Nvidia Quadro M2000M is a mid-range DirectX 12 (FL 11_0) and OpenGL 4.5-compatible graphics card for mobile workstations. It is a (first generation) Maxwell-based GPU built on the GM07 chip with 640 shader cores. Therefore, the GPU is similar to the consumer Nvidia GeForce GTX 960M or 950M. The Quadro M2000M is built for the Intel Skylake generation and is the successor to the Kepler-based Quadro K2100M. The M2000M typically comes with 4 GB GDDR5 VRAM clocked at 1250 MHz (5000 MHz effective at 80 GB/s compared to 48 GB/s on the K2100M).
The Quadro series offers certified drivers that are optimized for stability and performance in professional applications like CAD or DCC. OpenGL performance, for example, should be significantly better compared to GeForce graphics cards of similar specifications.
Performance
As the exact clock speed of the M2000M is still not known, we can only speculate on the performance of the card. However, we do know that it is a mid-range model from the mobile 2015 Quadro line based on the same chip as the GeForce GTX 960M or 950M. Therefore, it should be faster than the old Quadro K2100M.
Using CUDA (Compute Capability 5.0) or OpenCL 1.2, the cores of the Quadro M2000M can be used for general calculations.
Power Consumption
The power consumption of the Quadro M2000M is rated for the same TGP of 55 Watt as the K2100M, including the board and memory components. Therefore, the card is suited for 15-inch notebooks and larger.
Original 4GB Graphics Video Card Replacement for Dell Precision M7520 M7510 M4800 M6700 M6800 HP ElitebBook 8760W 8770W Mobile Workstation Laptop Nvidia Quadro M1200M GDDR5 4 GB MXM Board Repair Parts Features:
Brand: Nvidia
Model: M2000M
Memory Size: 4 GB
GPU IC: N16P-Q3-A2
Memory Type: GDDR5
Condition: Used
Warranty: three months
(If removed sticker or sign, no warranty)
Remark:
1. The MXM card tested in laptop & 3D mark befor sent.
2. Some of Laptop need updated bios & compatible it.
3. If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.
Manufacturer NVIDIA
Quadro M Series
Quadro M2000M 640 @ 1038 - 1197 (Boost) MHz 128 Bit @ 5000 MHz
Architecture Maxwell
Pipelines 640 - unified
Core Speed 1038 - 1197 (Boost) MHz
Memory Speed 5000 MHz
Memory Bus Width 128 Bit
Memory Type GDDR5
Max. Amount of Memory 4096 MB
Shared Memory no
DirectX DirectX 12 (FL 11_0), Shader 5.0
Transistor Count 1870 Million
technology 28 nm
Features Optimus, PhysX, 3D Vision Pro, nView, Optimus
Notebook Size large
Date of Announcement 02.10.2015 = 1461 days old
Package Content
Original 4GB Graphics Video Card Replacement for Dell Precision M7520 M7510 M4800 M6700 M6800 HP ElitebBook 8760W 8770W Mobile Workstation Laptop Nvidia Quadro M1200M GDDR5 4 GB MXM Board Repair Parts Free Shipping x 1
