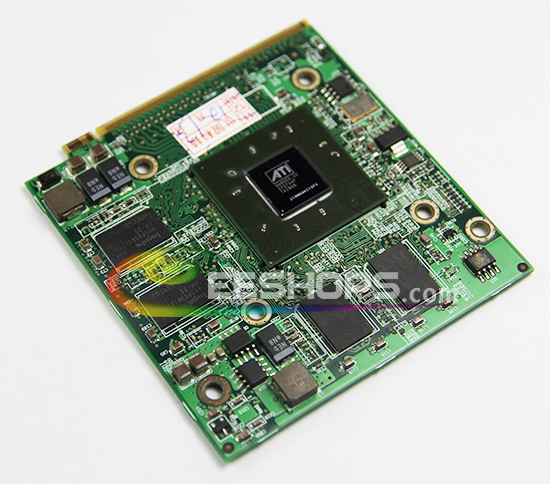

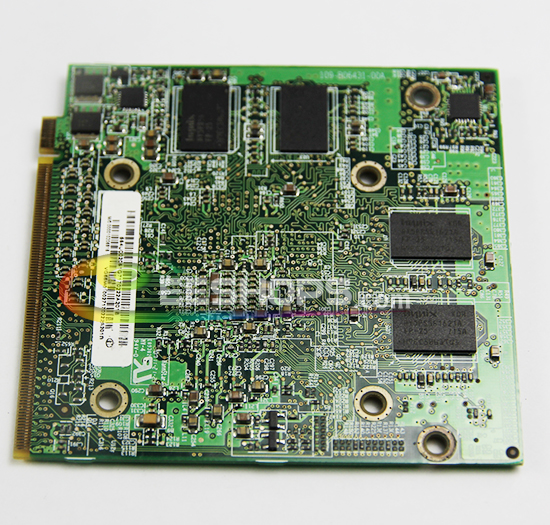

Original Acer Extensa 5420G 5620G 7620G 5420 5620 Laptop AMD ATI Radeon HD 2400 XT HD2400 DDR2 128MB MXM II Graphics Video Card Replacement Free Shipping
Not brand new, tested in fully work condition, with Acer Bios
Product Description
This is a DirectX 10 graphic card from ATI and direct competitor to the NVIDIA GeForce 8400M GT graphic card for laptops. This would mean that the card is able to represent all modern games in medium resolutions and without Antialiasing without motion interruptions.
Due to the Avivo HD videoengine the Chip accelerates HD Video like HD DVD, Blu-ray (Video Decoder for H.264/AVC, VC-1, MPEG-1, MPEG-2, MPEG-4/DivX Video Codecs). Furthermore PowerPlay 7.0 brings longer battery runtimes. Furthermore, ATI Mobility Radeon HD 2600 is certified for Windows Vista (for the Aero user interface).
Technically, the chip owns 40 stream processors which are able to manage vertex-, geometric or pixelshader operations. Therefore DirectX 10.0 and Shader Model 4.0 are supported. To be mentioned is also the 256 bit wide ringbus. Further, the chip ought to be a higher clocked version of the normal Mobility Radeon HD 2400.
Compared to the Desktop 2400 XT the Mobility version has a 100 MHz slower memory and core clock and is therefore a bit slower.
Original Acer Extensa 5420G 5620G 7620G 5420 5620 Laptop AMD ATI Radeon HD 2400 XT HD2400 DDR2 128MB MXM II Graphics Video Card Replacement Free Shipping Features
The card compatible MXM slot in Laptop, some of laptop need update bios.
Brand: ATI
Model: Mobility Radeon HD 2400
Memory Size: 258MB
Type: MXM-II (73mm x 78mm)
| Manufacturer | ATI |
| Series | Mobility Radeon HD 2400 |
| Codename | M74 |
| Pipelines | 16 - unified |
| Core Speed * | 600 MHz |
| Shader Speed * | 600 MHz |
| Memory Speed * | 700 MHz |
| Memory Bus Width | 64 Bit |
| Memory Type | DDR2, GDDR3 |
| Max. Amount of Memory | 512 MB |
| Shared Memory | no
|
| DirectX | DirectX 10, Shader 4.0 |
| Current Consumption | 14 Watt |
| Transistors | 180 Million |
| technology | 65 nm |
| Features | Avivo HD Video, PowerPlay 7.0, Programmable Tesselation Unit (meant for Direct X 10.1), OpenGL 2.0 |
| Notebook Size | small and light |
| Date of Announcement | 14.05.2007 |
Package Content
Original Acer Extensa 5420G 5620G 7620G 5420 5620 Laptop AMD ATI Radeon HD 2400 XT HD2400 DDR2 128MB MXM II Graphics Video Card Replacement Free Shipping x 1
