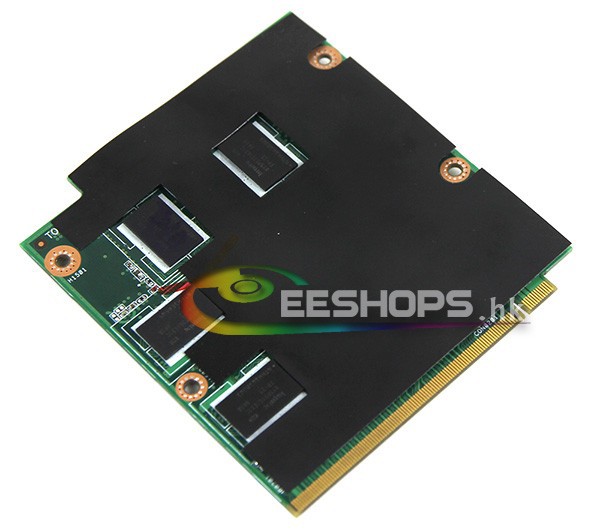

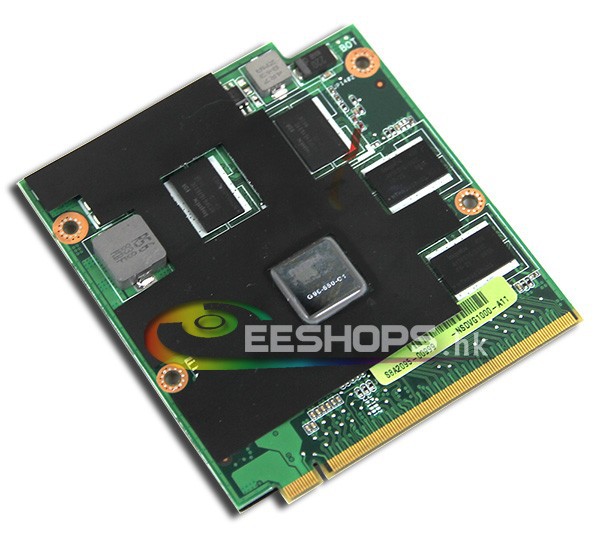

Original Asus M50 M50V M70 M70V M50 M50VM M50VM M50VN Laptop Graphics Video Card NVIDIA GeForce 9650M GT G96-650-C1 1GB GA Board Replacement Free Shipping
Product Description
Not New , tested in full working condition before shipping.
The card compatible MXM slot in Laptop, Basically, only laptops with a MXM 2 Slot (or higher level) are compatible. some laptops need update bios.
NVIDIA GeForce 9650M GT
The Nvidia GeForce 9650M GT is a DirectX 10 graphics card for notebooks and technically a higher clocked 9600M GT. It is produced in 55nm and therefore the current consumption is similar to the 9600M GT which is produced in 65nm. As the 9600M GT it features the PureVideo HD video processor (VP3) and HybridPower support.
In conjunction with the Nvidia 9100M G integrated graphics, the 9650M GT supportsHybrid-SLI (only HybridPower). HybridPower is a technique to choose between the integrated and dedicated graphics core, if performance or battery runtime is needed. This works only in Windows Vista. Up to now the user has to use a tool to switch between the GPUs. Later Nvidia wants to switch automatically in the drivers.GeForceBoost is not supported with this card, as there would be no performance gain.
As the 8600M GT and 9600M GT, the 9650M GT features 32 stream processors that do the graphic work of the vertex- and pixel-shaders.
The performance of the 9650M GT should be somewhere near the 9650M GS because of the high shader clock rate (with GDDR3). According to Zepto (first manufacturer who announced the card) the 9650M GT should be up to 20% faster than a 9600M GT (in 3DMark06).
Compared to desktop graphics cards, the 9650M GT is similar to the GeForce9500GT (which also descends from the G96 core). The desktop CPU 9600 GT has a 256 bit memory bus and is therefore much faster.
Original Asus M50 M50V M70 M70V M50 M50VM M50VM M50VN Laptop Graphics Video Card NVIDIA GeForce 9650M GT G96-650-C1 1GB GA Board Replacement Features
The card compatible MXM slot in Laptop, some of laptop need update bios.
|
Manufacturer
|
for NVIDIA
|
|
GeForce 9600M Series
|
|
GeForce 9650M GT
|
32 @ 550 MHz
|
128 Bit @ 800 MHz
|
|
GeForce 9600M GT
|
32 @ 500 MHz
|
128 Bit @ 800 MHz
|
|
GeForce 9600M GS
|
32 @ 430 MHz
|
128 Bit @ 800 MHz
|
|
|
Codename
|
NB9P-GT
|
|
Architecture
|
G9x
|
|
Pipelines
|
32 - unified
|
|
Core Speed *
|
550 MHz
|
|
Shader Speed *
|
1325 MHz
|
|
Memory Speed *
|
800 MHz
|
|
Memory Bus Width
|
128 Bit
|
|
Memory Type
|
GDDR2, GDDR3
|
|
Max. Amount of Memory
|
1024 MB
|
|
Shared Memory
|
no
|
|
DirectX
|
DirectX 10, Shader 4.0
|
|
Power Consumption
|
23 Watt
|
|
Transistors
|
314 Million
|
|
technology
|
55 nm
|
|
Features
|
PCI-E 2.0, 400 MHz Speichertaktung bei GDDR2, 800 MHz bei GDDR3, PureVideo HD Technologie (VP3), Hybrid SLI mit HybridPower (mit aktuellen nVidia Chipsätzen).
|
|
Notebook Size
|
medium sized
|
|
Date of Announcement
|
19.08.2008
|
Remark:
1. The MXM card tested in laptop & 3D mark befor sent.
2. Some of Laptop need updated bios & compatible it.
3. If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.
4. Pls paste the heat-sink sticker as below photo before install the card
5. come with the card only, without any accessaries like the headsink or drive disk.
Package Content
Original Asus M50 M50V M70 M70V M50 M50VM M50VM M50VN Laptop Graphics Video Card NVIDIA GeForce 9650M GT G96-650-C1 1GB GA Board Replacement Free Shipping x 1
