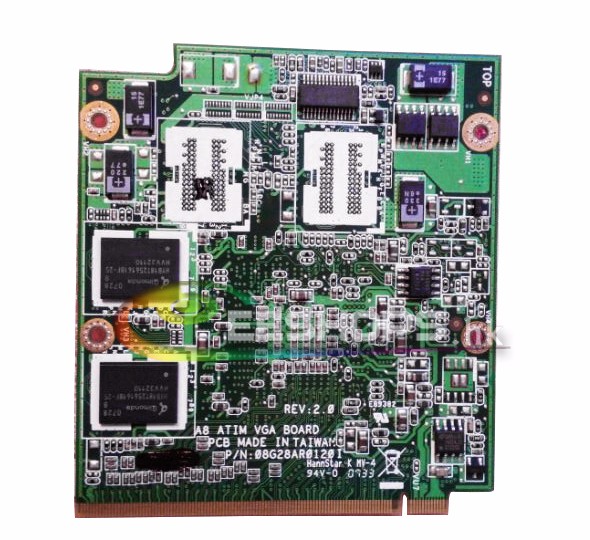

Original Asus Z99 Z99S Z99J Z99D F8T F8S X81S Laptop ATI Radeon X2300 HD2300 M64-M DDR2 256MB Graphics Video Card Replacement Free Shipping
used , tested in full working condition before shipping.
The card compatible MXM slot in Laptop, Basically, only laptops with a MXM 2 Slot (or higher level) are compatible. some laptops need update bios.
Warranty: 90 days!
Product Description
ATI Mobility Radeon X2300
ATI Mobility Radeon X2300 is the successor of ATI Mobility Radeon X1350 for notebooks. Technically it is just a renamed X1350 and therefore also only supports DirectX 9. Also the gaming performance is compareable to the X1350. This means only very low setting in not very demanding games can be displayed fluently.
As other X1000 cards the X2300 supports AVIVO video engine to accelerate MPEG-2, MPEG-4, DivX, WMV9 and VC-1 videos.
The HD version also supports the UVD acceleration for HD videos.
Aero Glass of Windows Vista should run fluently.
Original Asus Z99 Z99S Z99J Z99D F8T F8S X81S Laptop ATI Radeon X2300 HD2300 M64-M DDR2 256MB Graphics Video Card Replacement Free Shipping Features
The card compatible MXM slot in Laptop, some of laptop need update bios.
Manufacturer | ATI |
Mobility Radeon X2000 Series | Mobility Radeon X2500 | 12/5 cores @ 460 MHz | 64 / 128 Bit @ 400 MHz | Mobility Radeon X2300 | 4/2 cores @ 480 MHz | 128 Bit @ 400 MHz | |
Codename | M64 |
Pipelines | 4 / 2 Pixel- / Vertexshader |
Core Speed * | 480 MHz |
Memory Speed * | 400 MHz |
Memory Bus Width | 128 Bit |
Memory Type | DDR1/DDR2/GDDR3 |
Max. Amount of Memory | 256 MB |
Shared Memory | no HyperMemory wird unterstützt |
DirectX | DirectX 9c, Shader 3.0 |
Transistors | 105 Million |
technology | 80 / 90 nm |
Features | 90nm Herstellungsprozess, PCI Express X16 Interrace, PoxerPlay 6.0, Avivo Video Architektur (MPEG-2, MPEG-4, DivX, WMV9, VC-1 Beschleunigung), 64-bit Floating Point HDR, Ultra-Threaded Shader Engine |
Date of Announcement | 01.03.2007 |
Remark:
1. The MXM card tested in laptop & 3D mark befor sent.
2. Some of Laptop need updated bios & compatible it.
3. If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.
4. Pls paste the heat-sink sticker as below photo before install the card
5. come with the card only, without any accessaries like the headsink or drive disk.
Package Content
Original Asus Z99 Z99S Z99J Z99D F8T F8S X81S Laptop ATI Radeon X2300 HD2300 M64-M DDR2 256MB Graphics Video Card Replacement Free Shipping x 1
