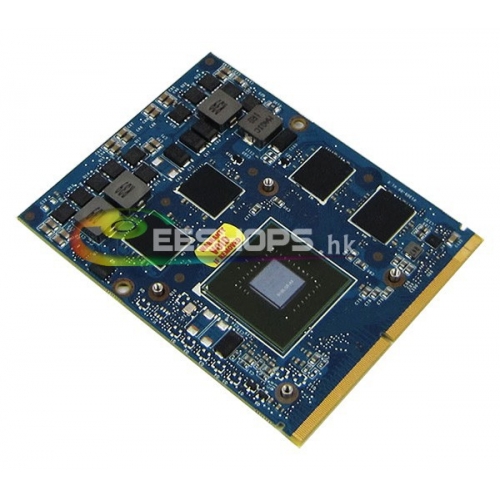

Original Dell Alienware M17X M18X R1 R2 R3 Notebook PC nVidia Geforce GTX 660M GTX660 N13E-GE-A2 DDR5 2GB Video Graphics Card VGA Board Replacement

$126.99

  • Model: GTX660M
  • Units in Stock: 100


Free shipping

Description

Original Dell Alienware M17X M18X R1 R2 R3 Notebook PC nVidia Geforce GTX 660M GTX660 N13E-GE-A2 DDR5 2GB Video Graphics Card VGA Board Replacement Free Shipping



Used, Tested in perfect working condition

 three months warranty

Product Description:



  • Manufacturer: nVidia
  • Condition: Used
  • Model: GeForce GTX 660M

  • come with the card only, without any accessaries like the headsink or drive disk

Buy Cheap nVidia Geforce GTX 660M GTX660M for Dell Alienware M15X M17X R2 R3 R4 M18X R2 Laptop GDDR5 2GB Graphics Video Card VGA Board Replacement

NVIDIA GeForce GTX 660M



The for NVIDIA GeForce GTX 660M is an upper mid-range, DirectX 11.1 compatible graphics card that was announced in the first quarter of 2012 for laptops. As of this writing, it is the fastest Kepler-based GPU built on the GK107 architecture and is manufactured in 28nm at TSMC. The graphics card uses a 128-Bit wide memory interface with GDDR5-VRAM.

Architecture

The Kepler architecture is the successor to the Fermi architecture that first appeared in laptops with the GeForce 400M series. The GK107 Kepler core offers two shader blocks, called SMX, each with 192 shaders for a total of 384 shader cores that are clocked at the same speed as as the central core. Although more shader cores are available in the Kepler architecture as compared to the Fermi design, the Kepler shaders are still expected to be up to twice as power efficient. However, due to the missing hot clock of the shader domain, two shaders of a Kepler chip are of similar speed to one shader of a Fermi chip (as the latter was clocked twice as fast). PCIe 3.0 is now supported by the mobile Kepler series and an optional Turbo mode can automatically overclock the Nvidia card by a theoretical 15 percent if the laptop cooling system allows it. The implementation of this boost mode is done in the BIOS, but it is ultimately dependent upon the manufacturer of the laptop.

Performance

Thanks to the GDDR5-VRAM, the gaming performance of the GeForce GTX 660M is well ahead of the GT 650M DDR3 and on par with the A M D Radeon HD 6950M. Even the older high-end Fermi-GPU GTX 570M is only slightly faster. Therefore, current games as of 2012 run moderately well in 1080p resolution and high details. Only a few very demanding games, such as Metro 2033 or Crysis 2, may need reduced graphical settings for smoother gameplay.

Features

The improved feature set now includes support for up to 4 active displays. Furthermore, high resolution monitors of up to 3840x2160 pixels can now be connected using DisplayPort 1.2 or HDMI 1.4a if available. HD-Audio codecs, such as Dolby TrueHD and DTS-HD, can be transmitted via bitstream mode through the HDMI port. However, as most laptops will feature Optimus, the integrated GPU will likely have direct control over the display ports and may limit the feature set available by the Nvidia Kepler cards.

The 5th generation PureVideo HD video processor (VP5) is also integrated in the GK107 core and offers hardware decoding of HD videos. Common codecs such as MPEG-1/2, MPEG-4 ASP, H.264 and VC1/WMV9 are fully supported up to 4K resolutions while VC1 and MPEG-4 are supported up to 1080p. Two streams can be decoded in parallel for features such as Picture-in-Picture. Another novelty is the inclusion of a dedicated video encoding engine similar to Intel QuickSync that can be accessed by the NVENC API.



The power consumption of the GeForce GTX 660M should be best suited for notebooks 15-17 inches or greater.



Original Dell Alienware M17X M18X R1 R2 R3 Notebook PC nVidia Geforce GTX 660M GTX660 N13E-GE-A2 DDR5 2GB Video Graphics Card VGA Board Replacement Features




Brand: nVidia

Model: GTX 660M

Memory Size: 2.0 GB

GPU IC:   N13E-GE-A2

Condition: used

Warranty: three months

(If removed sticker or sign, no warranty)

Remark:1. The MXM card tested in laptop & 3D mark befor sent.

2. Some of Laptop need updated bios & compatible it.

3.  If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.



Manufacturer

NVIDIA

GeForce GTX 600M Series

GeForce GTX 680M SLI

2688 @ 720 MHz

2x 256 Bit @ 3600 MHz

GeForce GTX 680MX

1536 @ 720 MHz

256 Bit @ 5000 MHz

GeForce GTX 675M SLI

768 @ 620 MHz

256 Bit @ 3000 MHz

GeForce GTX 680M

1344 @ 720 MHz

256 Bit @ 3600 MHz

GeForce GTX 670MX SLI

1920 @ 600 MHz

2x 192 Bit @ 2800 MHz

GeForce GTX 675MX

960 @ 600 MHz

256 Bit @ 3600 MHz

GeForce GTX 675M

384 @ 620 MHz

256 Bit @ 3000 MHz

GeForce GTX 670MX

960 @ 600 MHz

192 Bit @ 2800 MHz

GeForce GTX 670M

336 @ 598 MHz

192 Bit @ 3000 MHz

GeForce GTX 660M

384 @ 835 MHz

128 Bit @ 4000 MHz

Codename

N13E-GE

Architecture

Kepler

Pipelines

384 - unified

Core Speed *

835 MHz

Memory Speed *

4000 MHz

Memory Bus Width

128 Bit

Memory Type

GDDR5

Max. Amount of Memory

2048 MB

Shared Memory

no

DirectX

DirectX 11, Shader 5.0

technology

28 nm

Features

Optimus, SLI, PhysX, Verde Drivers, CUDA, 3D Vision, 3DTV Play

Notebook Size

large

Date of Announcement

22.03.2012



Package Content



Original Dell Alienware M17X M18X R1 R2 R3 Notebook PC nVidia Geforce GTX 660M GTX660 N13E-GE-A2 DDR5 2GB Video Graphics Card VGA Board Replacement Free Shipping  x 1





Additional Information

  • Model: GTX660M
  • Shipping Weight: 0.15kg
  • 100 Units in Stock
