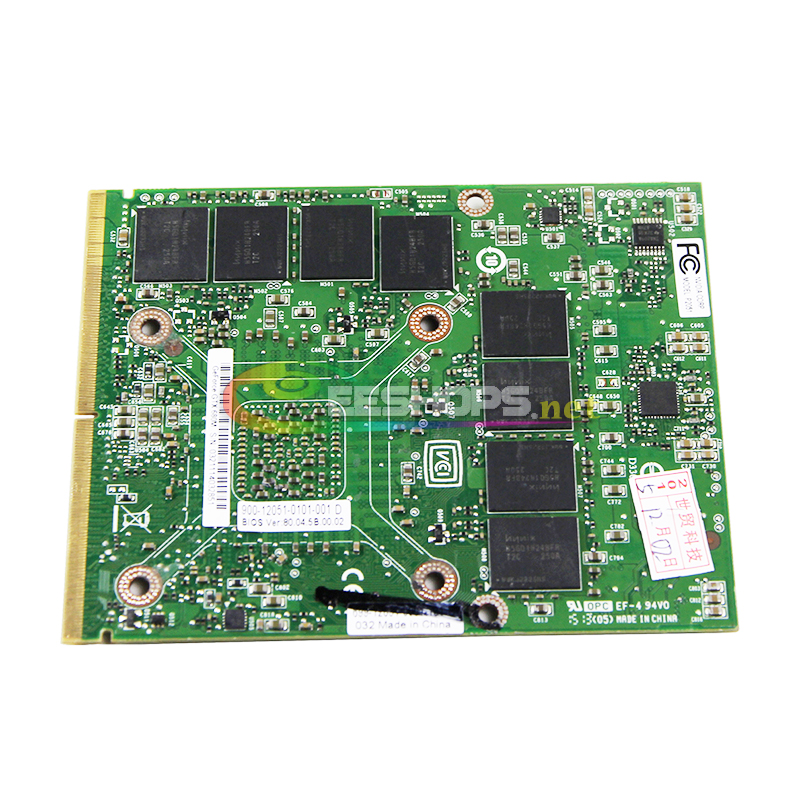

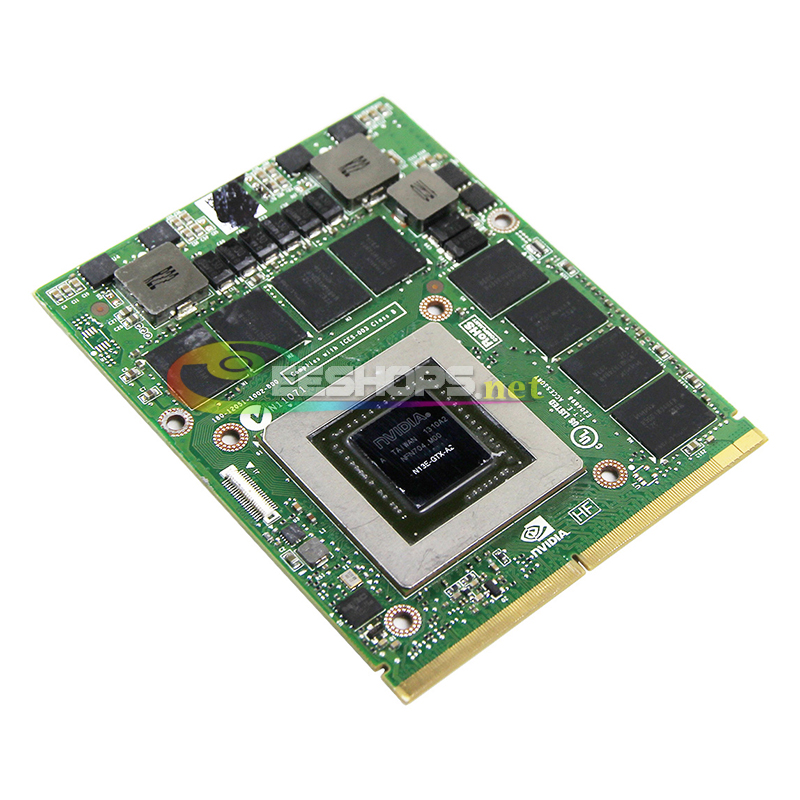

Buy Cheap Original GDDR5 2GB Graphics Video Card NVIDIA GeForce GTX 680M GTX680M for Dell Alienware M15X R1 R2 M17X R1 R2 R3 R4 M18X R1 R2 MSI Computer GT60 GT70 Gaming Laptop MXM VGA Board Upgrade Replacement Free Shipping

Original, Used, Pulled Not New, Tested in Perfect Working Condition.

Three Months Warranty

Product Description:

• Condition: Used
• Comes with the card only, without any accessaries like the headsink or drive disc.
• GDDR5 2GB Memory, Best choice to upgrade or replace the old card in Dell/MSI laptop.
• Three Months Warranty.

The NVIDIA GeForce GTX 680M is a high-end DirectX 11.1-compatible graphics card for laptops and was announced during Computex 2012. It was the fastest GPU available for notebooks at the time of announcement and has a 28nm GK104 core based on the Kepler architecture. Compared to the desktop GeForce GTX 670, the GTX 680M also features 1344 CUDA cores, but the mobile counterpart operates at reduced core and memory clock speeds (720/1800MHz vs 915-980/3004MHz).

Architecture

The Kepler architecture is the successor to the Fermi architecture that first appeared in laptops with the GeForce 400M series. The GK104 Kepler core offers eight shader blocks, called SMX, that are clocked at the same speed as the central core. In the GTX 680M, 7 blocks are active leading to the 1344 CUDA cores. Although more shader cores are available in the Kepler architecture as compared to the Fermi design, the Kepler shaders are still expected to be up to twice as power efficient. However, due to the missing hot clock of the shader domain, two shaders of a Kepler chip are of similar speed to one shader of a Fermi chip (as the latter is clocked twice as fast). PCIe 3.0 is now supported by the mobile Kepler series and an optional Turbo mode can automatically overclock the Nvidia card by a theoretical 15 percent if the laptop cooling system allows it. The implementation of this boost mode is done in the BIOS, but it is ultimately dependent upon the manufacturer of the laptop.

Performance

The graphics performance of the GeForce GTX 680M is on average above the Radeon HD 7970M, thus making the Nvidia card the fastest mobile graphics card as of summer 2012. The GPU has enough power to run demanding games of 2012 fluently with Full HD resolution and maxed out graphical settings. Only the extremely demanding title The Witcher 2 will not run fluently in ultra settings. Battlefield 3, Skyrim, and Crysis 2, for example, are playable at the highest detail settings.

Features

The improved feature set now includes support for up to 4 active displays. Furthermore, high resolution monitors of up to 3840x2160 pixels can now be connected using DisplayPort 1.2 or HDMI 1.4a if available. HD-Audio codecs, such as Dolby TrueHD and DTS-HD, can be transmitted via bitstream mode through the HDMI port. However, as most laptops will feature Optimus, the integrated GPU will likely have direct control over the display ports and may limit the feature set available by the Nvidia Kepler cards.

The 5th generation PureVideo HD video processor (VP5) is also integrated in the GK104 core and offers hardware decoding of HD videos. Common codecs such as MPEG-1/2, MPEG-4 ASP, H.264 and VC1/WMV9 are fully supported up to 4K resolutions while VC1 and MPEG-4 are supported up to 1080p. Two streams can be decoded in parallel for features such as Picture-in-Picture. Another novelty is the inclusion of a dedicated video encoding engine similar to Intel QuickSync that can be accessed by the NVENC API.

The power consumption of the GeForce GTX 680M should be similar to the GTX 580M and therefore best suited for large notebooks (17-inches or greater) and desktop replacements.

Original GDDR5 2GB Graphics Video Card NVIDIA GeForce GTX 680M GTX680M for Dell Alienware M15X R1 R2 M17X R1 R2 R3 R4 M18X R1 R2 MSI Computer GT60 GT70 Gaming Laptop MXM VGA Board Upgrade Replacement Features:

Brand: Nvidia
Model: GTX 680M
Memory Size: 2 GB
GPU IC: N13E-GTX-A2
Condition: Used
Type: MXM 3.0B
Warranty: Three months
(If removed sticker or sign, no warranty)

Remark:

1. The MXM card tested in laptop & 3D mark befor sent.
2. Some of Laptop need updated bios & compatible it.
3. If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.

Manufacturer NVIDIA
GeForce GTX 600M Series
GeForce GTX 680M SLI (compare) 2688 @ 720 MHz 2x 256 Bit @ 3600 MHz
GeForce GTX 680MX (compare) 1536 @ 720 MHz 256 Bit @ 5000 MHz
GeForce GTX 675M SLI (compare) 768 @ 620 MHz 256 Bit @ 3000 MHz
GeForce GTX 680M 1344 @ 720 MHz 256 Bit @ 3600 MHz
GeForce GTX 670MX SLI (compare) 1920 @ 600 MHz 2x 192 Bit @ 2800 MHz
GeForce GTX 675MX (compare) 960 @ 600 MHz 256 Bit @ 3600 MHz
GeForce GTX 675M (compare) 384 @ 620 MHz 256 Bit @ 3000 MHz
GeForce GTX 670MX (compare) 960 @ 600 MHz 192 Bit @ 2800 MHz
GeForce GTX 670M (compare) 336 @ 598 MHz 192 Bit @ 3000 MHz
GeForce GTX 660M (compare) 384 @ 835 MHz 128 Bit @ 4000 MHz
Codename N13E-GTX
Architecture Kepler
Pipelines 1344 - unified
Core Speed 720 MHz
Memory Speed 3600 MHz
Memory Bus Width 256 Bit
Memory Type GDDR5
Max. Amount of Memory 4096 MB
Shared Memory no
DirectX DirectX 11, Shader 5.0
Transistor Count 3540 Million
technology 28 nm
Features Optimus, SLI, PhysX, Verde Drivers, CUDA, 3D Vision, 3DTV Play
Notebook Size large
Date of Announcement 04.06.2012 = 2680 days old

Package Content

Original GDDR5 2GB Graphics Video Card NVIDIA GeForce GTX 680M GTX680M for Dell Alienware M15X R1 R2 M17X R1 R2 R3 R4 M18X R1 R2 MSI Computer GT60 GT70 Gaming Laptop MXM VGA Board Upgrade Replacement Free Shipping x 1
