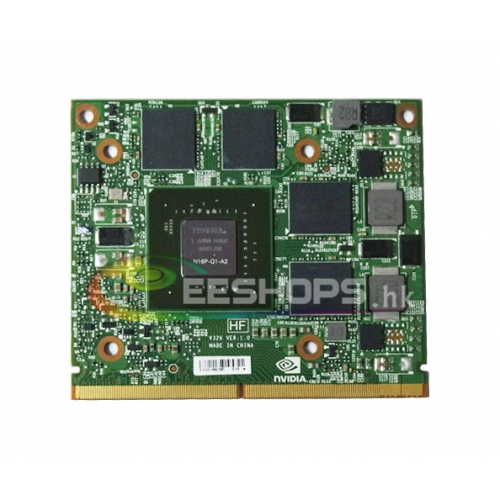

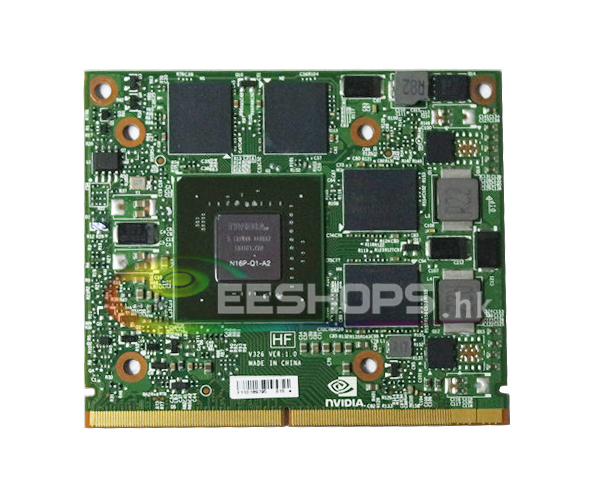

Original Prostar Clevo Sager MSI GT72 GT70 GT60 Gaming Laptop nVidia Quadro M1000M GDDR5 2GB Graphics Video Card Replace GTX 950M 960M Replacement Free Shipping
Not New, Tested in perfect working condition before shipping
Warranty: DOA 90 days!
NVIDIA Quadro M1000M
The 28nm NVIDIA Quadro M1000M is a mid-range DirectX 12 (FL 11_0) and OpenGL 4.5-compatible graphics card for mobile workstations. It is a 1st generation Maxwell-based GPU built on the GM07 architecture with 512 of the 640 shader cores activated. Therefore, the GPU is not similar to any current consumer card. The Geforce GTX 950M, for example, uses the full 640 shader cores. The Quadro M1000M is built for the Intel Skylake generation as the successor to the Kepler-based Quadro K1100M. The M1000M typically comes with 2 GB GDDR5 VRAM clocked at 1250 MHz (5000 MHz effective at 80 GB/s compared to 44.8 GB/s on the K1100M).
The Quadro series offers certified drivers that are optimized for stability and performance in professional applications like CAD or DCC. OpenGL performance, for example, should be significantly better compared to GeForce graphics cards of similar specifications.
Performance
As the exact clock speed of the M1000M is still not known, we can only speculate on the performance of the card. However, it is a lower mid-range model from the mobile Quadro line in 2015. It should be slower than the GTX 950M in 3D gaming due to the lower shader count, but should easily outperform the old Quadro K1100M.
Using CUDA (Compute Capability 5.0) or OpenCL 1.2, the cores of the Quadro M1000M can be used for general calculations.
Power Consumption
The power consumption of the Quadro M1000M is rated for a 40 Watt TGP including the board and memory components, which is 5 Watt lower than the K1100M. Therefore, the card is suited for 15-inch notebooks and greater.
Original Prostar Clevo Sager MSI GT72 GT70 GT60 Gaming Laptop nVidia Quadro M1000M GDDR5 2GB Graphics Video Card Replace GTX 950M 960M Replacement Features
Brand: Nvidia
Model: M1000M
Memory Size: 2 GB
GPU IC: N16P-Q1-A2
Memory Type: GDDR5
Condition: Used
Warranty: three months
(If removed sticker or sign, no warranty)
Remark:
1. The MXM card tested in laptop & 3D mark befor sent.
2. Some of Laptop need updated bios & compatible it.
3. If the MXM card driver conflict with some device driver in laptop, the operate system maybe need re-install.
|
Manufacturer
|
NVIDIA
|
|
Quadro M Series
|
|
|
|
|
|
Quadro M1000M
|
512 @ 993 - 1072 (Boost) MHz
|
128 Bit @ 5000 MHz
|
|
|
|
|
|
|
Architecture
|
Maxwell
|
|
Pipelines
|
512 - unified
|
|
Core Speed *
|
993 - 1072 (Boost) MHz
|
|
Memory Speed *
|
5000 MHz
|
|
Memory Bus Width
|
128 Bit
|
|
Memory Type
|
GDDR5
|
|
Max. Amount of Memory
|
4096 MB
|
|
Shared Memory
|
no
|
|
DirectX
|
DirectX 12 (FL 11_0), Shader 5.0
|
|
Power Consumption
|
40 Watt
|
|
Transistors
|
1870 Million
|
|
technology
|
28 nm
|
|
Features
|
Optimus, PhysX, 3D Vision Pro, nView, Optimus
|
|
Notebook Size
|
large
|
|
Date of Announcement
|
02.10.2015
|
Package Content
Original Prostar Clevo Sager MSI GT72 GT70 GT60 Gaming Laptop nVidia Quadro M1000M GDDR5 2GB Graphics Video Card Replace GTX 950M 960M Replacement Free Shipping x 1
