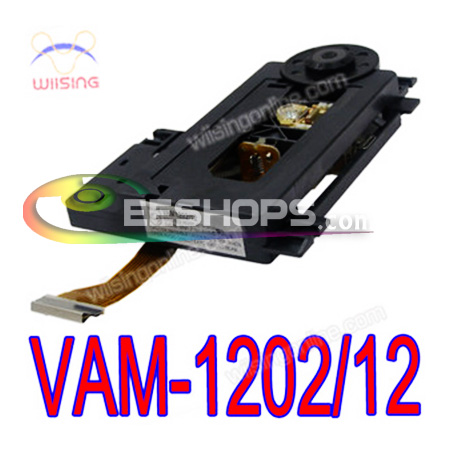

Original Philips VAM1202/12 Optical Pickup mechanism VAM-1202 CD VCD Laser Lens Assembly for CDM12.1 CDM12.2 Replacement Repair Part

$17.99

  • Model: SPU3032
  • Units in Stock: 198


Free shipping

Description

Original Philips VAM1202/12 Optical Pickup mechanism VAM-1202 CD VCD Laser Lens Assembly for CDM12.1 CDM12.2 Replacement Repair Part


Original Philips VAM1202/12 Optical Pickup mechanism VAM-1202 CD VCD Laser Lens Assembly for CDM12.1 CDM12.2 Replacement Repair Part

Description:

  • It is Original Philips VAM1202/12 Optical Pickup mechanism VAM-1202 CD VCD Laser Lens Assembly for CDM12.1 CDM12.2 Replacement Repair Part

Philips VAM1202/12 Optical Pickup Mechanism VAM-1202 VAM1202 CD Laser Lens Lasereinheit Assembly a modular CD-mechanism, using a 2-stage, 3-spot system. It contains the following modules:
 a light pen with holographic lightpath
 the actuator
 the disc motor : a DC motor with a turntable prepared for magnetic clamping
 the frame with the sledge drive and switch
 the foil with the laser supply


  • Features:

VAM1202 is the Philips official replacement for the CDM12 and VAM12xx.

Lightweight 3-beam LDGU with holographic pick-up, providing excellent thermal stability
 Small size / low-profile frame
 Unique low-mass actuator for fast, accurate focusing and radial tracking
 Reliable long-life DC motors
 Suitable for 12 and 8 cm discs
 Applicable in horizontal and specified vertical position
 Wide operating temperature range
 Prepared for a variety of approbation/safety standards


Type Number :- VAM1202/12
Code Number (12NC) :- 9305 022 20212
Laser LDGU : Sharp GH6C005B3BA

Laser : wavelength (T=30C) : 780nm ( 760-800 nm )
Disc Drive motor : Mabuchi RF300 CH11400

Sledge Drive Motor : Mabuchi FF030PK-08250 , Matsushita PPN7KB09B
Manufacturer : Philips
Part Number : VAM1202/12 Mechanism




Applicaitions:

  • Philips VAM1202/12 CD-mechanism is designed to be incorporated with the following :
    Philips Tray Loaders L1210/65 9305 023 20265
    Philips Tray Loaders L1210/68 9305 023 20268
    Philips Changer C1203/28 9305 024 20228

    BOSE PLS-1310
    BOSE PLS-1210
    BOSE SSS-1MC
    Marantz CD4000

    ATOLL CD 200
    CARY AUDIO DESIGN CD-303
    NAIM AUDIO CD5i
    VINCENT CD-S5


Package Included:

  •   1 x Original Philips VAM1202/12 Optical Pickup mechanism VAM-1202 CD VCD Laser Lens Assembly for CDM12.1 CDM12.2 Replacement Repair Part

Additional Information

Reviews: 0



This product was added to our catalog on Friday 23 November, 2012.
