FriendlyARM Mini2440 ARM9 S3C2440 Wince6.0 Development Developing Board 64MB RAM + 256MB Nand Flash Memory W/ 7" 800*480 Touch LCD Ccreen

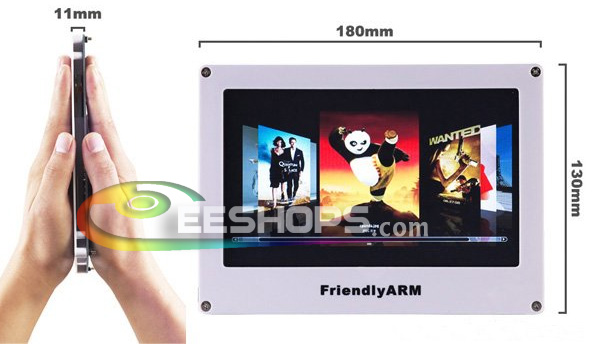

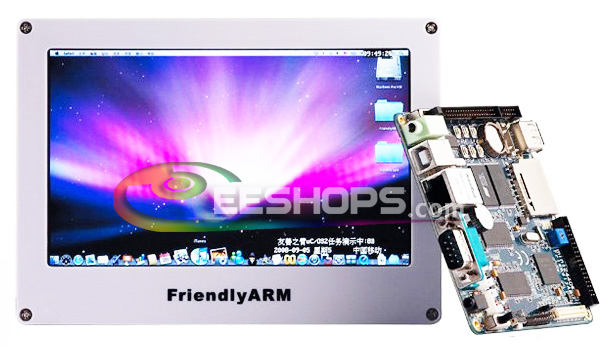

About 7-inch LCD screen
Model: AT070TN83 (digital display)
Resolution: 800x480
Backlight: LED backlight
Color RGB: 6-6-6 (26K colors)
Viewable area size: 152.4 X 91.44 mm
Contour Size: 165X104X5.5 (mm)
Net Weight: 130g
Introduction:
The MINI2440 is an effecient ARM9 development board with a comprehensive price, it characterizes simple method and high performance-price ratio. Based on the Samsung S3C2440 microprocessor, it embodies professional stable CPU core power source chip and reset chip to ensure the stability of the system operation. The PCB on the MINI2440 board is designed to be 4-layers board, adopting the ENIG technology and professional equal-length wiring to ensure the completeness of the signals of the key signal wires; and manufactured and released under stringent quality control plans. With the help of this detailed manual, users are supposed to become proficient in the development process of embedded Linux and WinCE operating system, they are supposed to get the foundation, so long as they have obtained the basic and necessary knowledge about the C language, in two weeks.

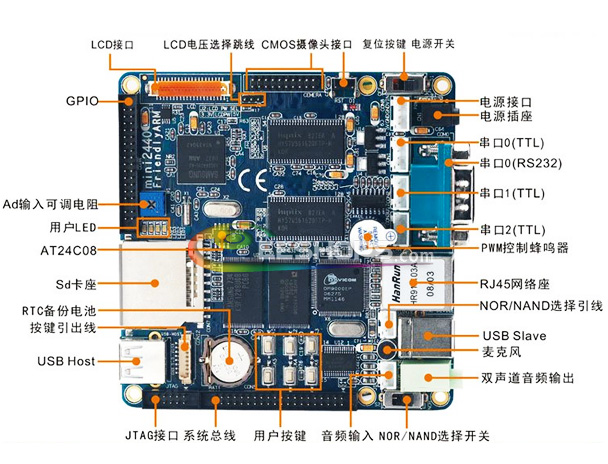

FriendlyARM Mini2440 ARM9 S3C2440 Wince6.0 Development Developing Board 64MB RAM + 1GB Nand Flash Memory W/ 7" 800*480 Touch LCD Ccreen Features
Processor (CPU) Samsung S3C2440 (ARM920T core with MMC, the highest frequency up to 532MHz)
Memory (SDRAM) 64Mbyte
Flash 128M/256M/1GBNand Flash + 2M Nor Flash (already installed BIOS)
LCD support (LCD Support)
board integrated 4-wire resistive touch screen interface for direct connection of four-wire resistive touch screen
support for black and white, 4-level grayscale, 16-level grayscale, 256-color, 4096 color STN LCD screen size from 3.5 inches to 12.1 inches, 1024x768 pixel screen resolution can be achieved;
support for black and white, 4-level grayscale, 16-level grayscale, 256-color, 64K colors, true color TFT LCD screen sizes from 3.5 inch to a 12.1-inch, screen resolution up to 1024x768 pixels;
standard configuration for the NEC 256K TFT true color LCD color 240x320/3.5 inch screen with touch screen;
board leads to a 12V power supply interface for large-size TFT LCD 12V CCFL backlight module (Inverting) power supply.
USB port (USB Port) 1 key result USB interface, a USB interface, from
Audio (Audio) 1 stereo audio output interface (standard 3.5mm interface), 1 Mic Interface
Network (LAN) 1 100M Ethernet RJ-45 I (using DM9000 NIC)
SD / MMC card an SD / MMC card memory interface
Camera (Cemera) leads to all the camera CPU internal signal pin
Serial Port (UART) 3 serial port, COM0 to RS232 DB9 interface (TTL interface, also leads), COM2 and COM3 to 2.0mm pitch
Jtag JTAG Interface Standard switch (2.0mm pitch)
Keys (buttons) 6 user buttons
LEDs 4 user indicators
I2C devices (I2C bus) AT24C08
AD Input (AD input) variable resistor AD input experiment
PWM Control PWM control buzzer buzzer
Real Time Clock (RTC) on board real time clock with lithium battery backup
Extension Interface (Expansion) 1 pcs 34pin 2.0mmGPIO Interface
1 pcs 40pin 2.0mm system bus interface
Power Input (Power Suuply) 5V power input
Size (Dimensions) 100x100 mm

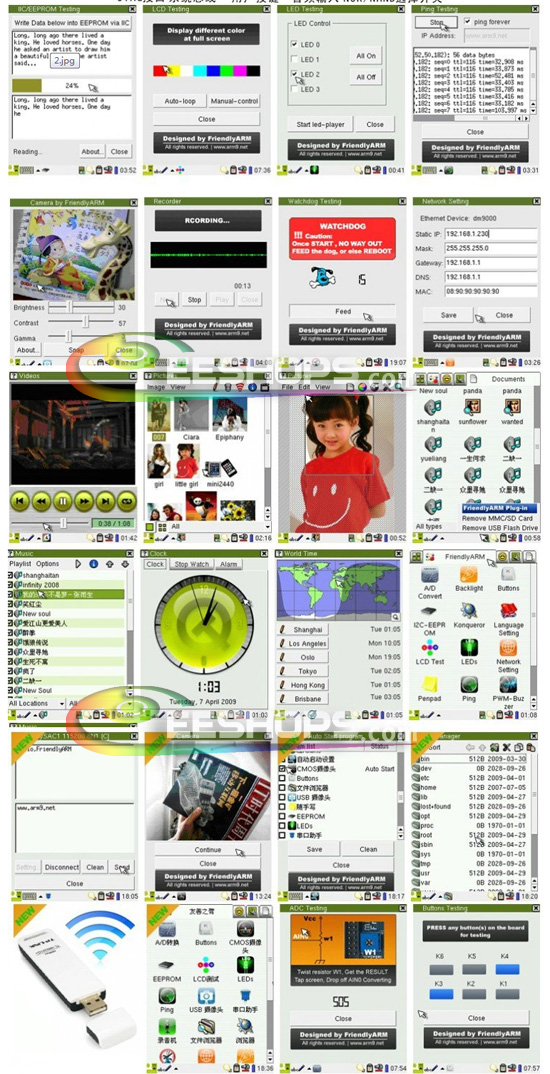

Operating System Support (OS support) Linux-2.6.32.2/WindowsCE6/uCos2/2440test
FriendlyARM Mini2440 ARM9 S3C2440 Wince6.0 Development Developing Board 64MB RAM + 1GB Nand Flash Memory W/ 7" 800*480 Touch LCD Ccreen Includes:
1) mini2440 Learning Development Board 1G NandFlash
2) power adapter (+5 V)
3) DB9 serial cable with a straight
4) cross-network line
5) USB cable 1
6) Easy JTAG + JTAG download a small plate line (can be carried out with H-JTAG debug single step simulation)

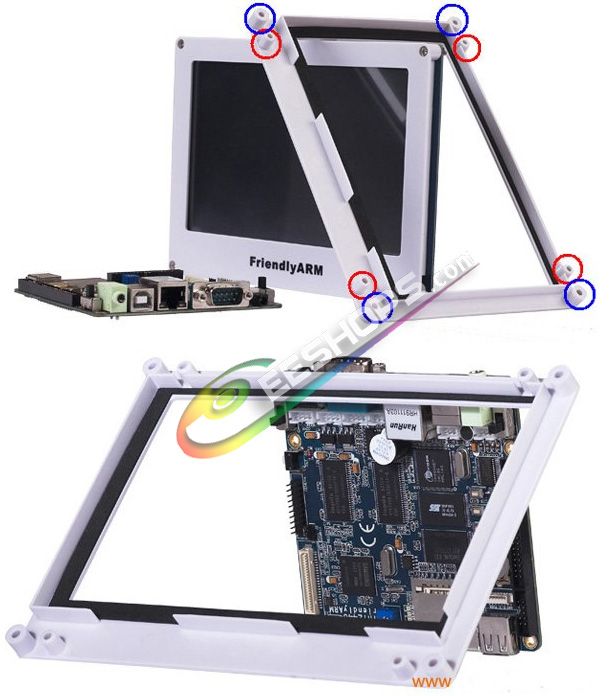

7) with a touch of the new group create a 7 inch touch screen
8) Original disc a DVD development
9), a beautiful box
